Directional-Control Valve (MVW1)

Location	Description	Type	Basic value

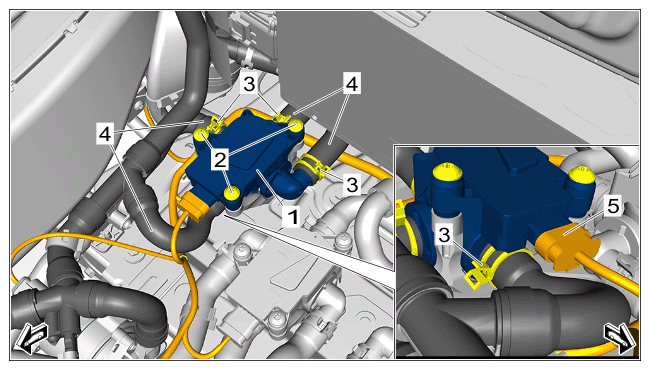

Screw securing directional-control valve (MVW1) to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Directional-control valve (MVW1)	Item 2	Tightening torque	8 Nm (6 ftlb.)

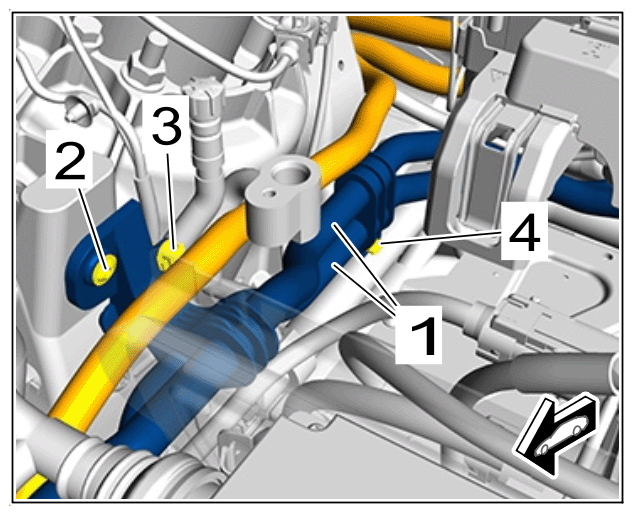

Screw securing holder for heat exchanger supply hose (section from directional-control valve to electric passenger compartment heater)	Item 4	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger supply hose

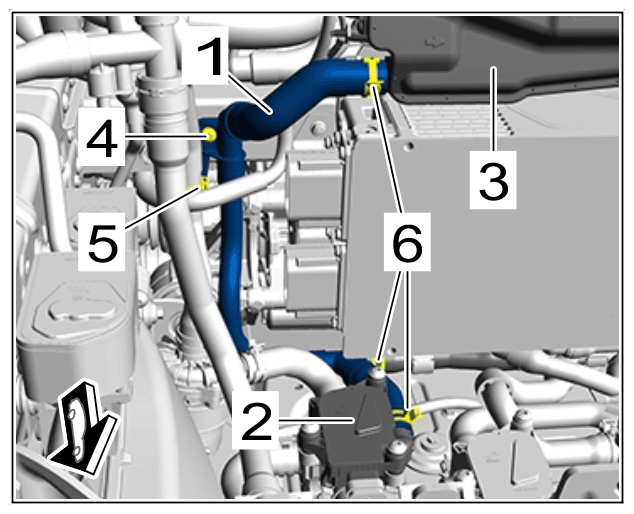

Heat exchanger supply hose holder (section of supply and return hose on heat exchanger 1)	Screw	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger supply and return hose
