Heat Exchanger

Location	Description	Type	Basic value

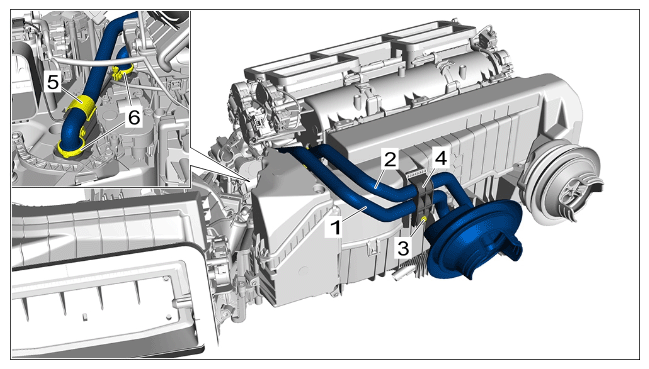

Heat exchanger supply and return pipe holder	item 3	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger supply and return pipes
V-band clamps for heat exchanger supply and return pipes	Item 6	Tightening torque	1.8 Nm (1.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger supply and return pipes
