Technical Values: Overview

Location	Description	Type	Basic value
Coolant connection pieces to automatic transmission with electric motor	Item 1, screw, M6 x 14	Tightening torque	3 Nm (2 ftlb.)
Coolant connection pieces to automatic transmission with electric motor	Item 1, screw, M6 x 14	Angle	60 °

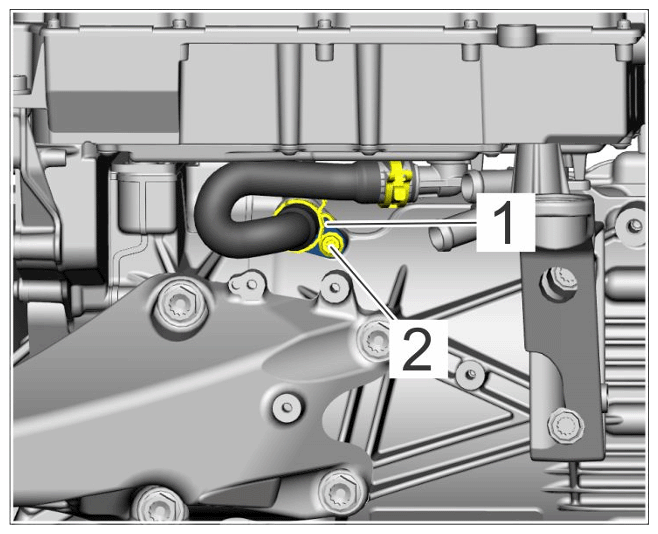

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connection pieces for automatic transmission with electric motor
Coolant line to all-wheel final drive	Item 3	Tightening torque	8 Nm (5.9 ftlb.)

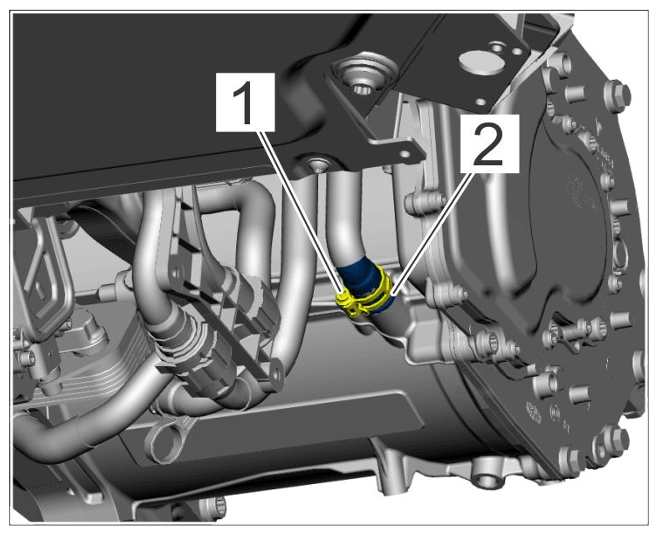

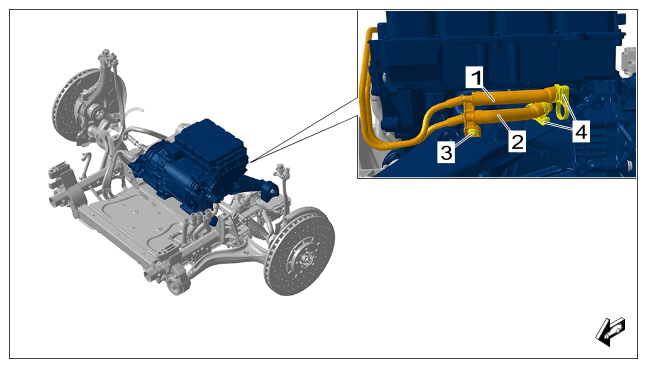

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant lines for all-wheel final drive
Coolant support to all-wheel final drive	Item 2: Screw M6 x 14	Initial tightening	3 Nm (2.2 ftlb.)
Coolant support to all-wheel final drive	Item 2: Screw M6 x 14	Final tightening torque angle	60 °

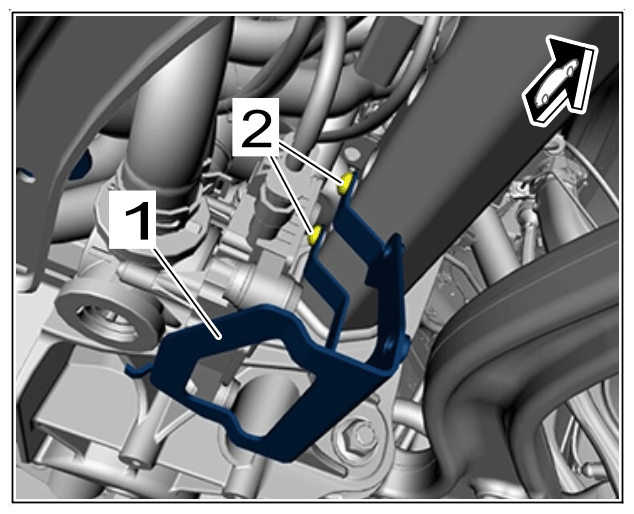

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant support to all-wheel final drive
Screw for coolant pump holder	M6 x 35	Tightening torque	8 Nm (6 ftlb.)
Screw securing basic holder for coolant pump/directional-control valve to longitudinal member	M6 x 16	Tightening torque	8 Nm (6 ftlb.)
Screw for coolant distributor for high-voltage system	M6	Tightening torque	8 Nm (6 ftlb.)
Screw securing holder for coolant distributor for high-voltage system to cross member	M6 x 25	Tightening torque	8 Nm (6 ftlb.)
Screw securing holder to coolant distributor for high-voltage system	TP6 x 16	Tightening torque	2 Nm (1.5 ftlb.)
Lirectional-control valve to coolant distributor for high-voltage system	M6	Tightening torque	2 Nm (1.5 ftlb.)
Lirectional-control valve to holder	Screw, M6 x 32	Tightening torque	8 Nm (6 ftlb.)
Holder for cooling switch-over valve (UVW1)	Item 2/Screw, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

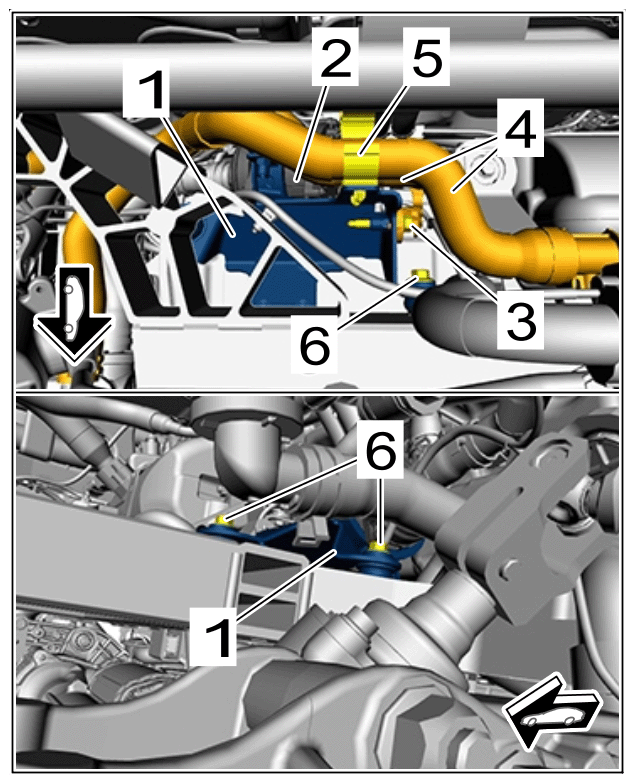

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Directional-control valve holder
Coolant pump to holder	M6 screw	Tightening torque	8 Nm (6 ftlb.)
Coolant pump holder	Item 6/Screw, M6 x 40	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with coolant pump (P2)
Holder for coolant hose to coolant pump holder	Item 3/M6 screw	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder with coolant pump (P2)
Holder for coolant hose for high-voltage battery to bodyshell	Item 3/M6 screw	Tightening torque	8 Nm (6 ftlb.)

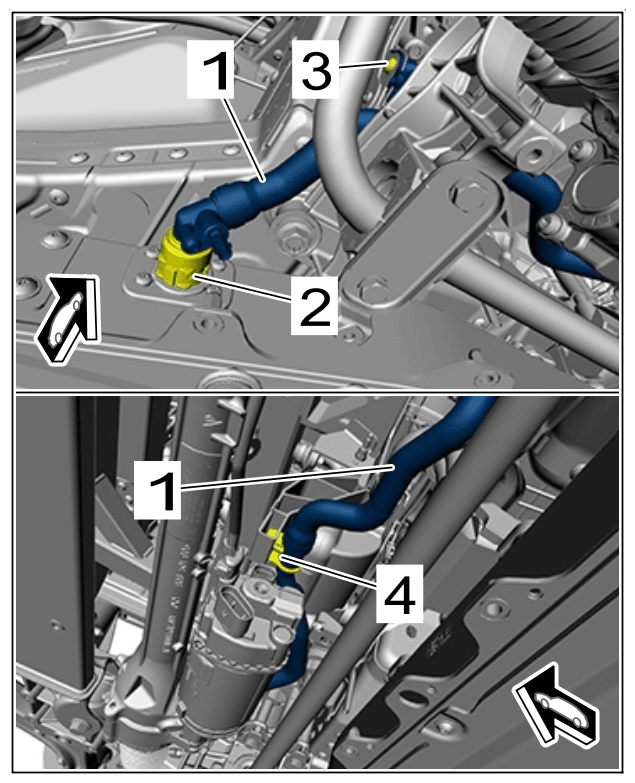

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant hose for high-voltage battery
Screw for temperature sensor		Tightening torque	2.8 Nm (2 ftlb.)
Frame for cooling-air flaps to front apron	Oval-head screw, 6 x 20	Tightening torque	2.5 Nm (1.75 ftlb.)

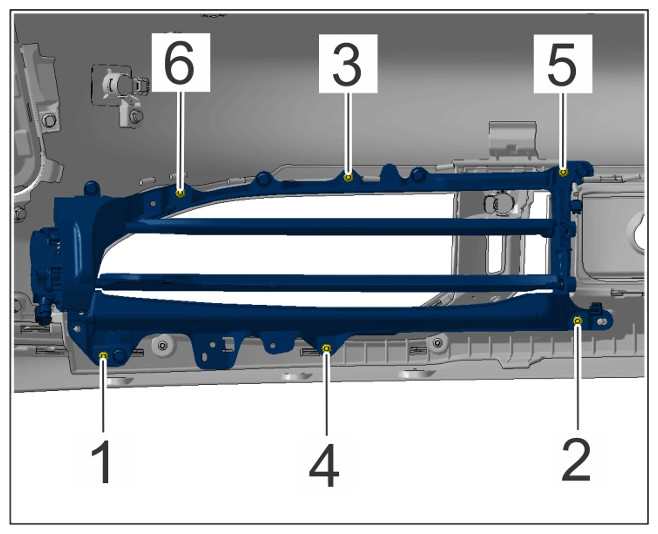

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening sequence for cooling-air flaps
Cooling fan housing on radiator	Item 1	Tightening torque	4.5 Nm (3 ftlb.)

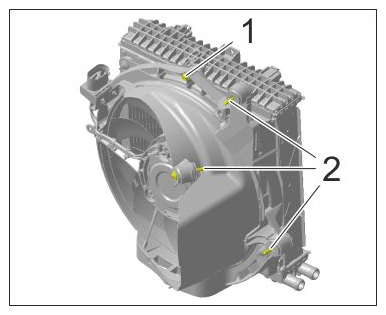

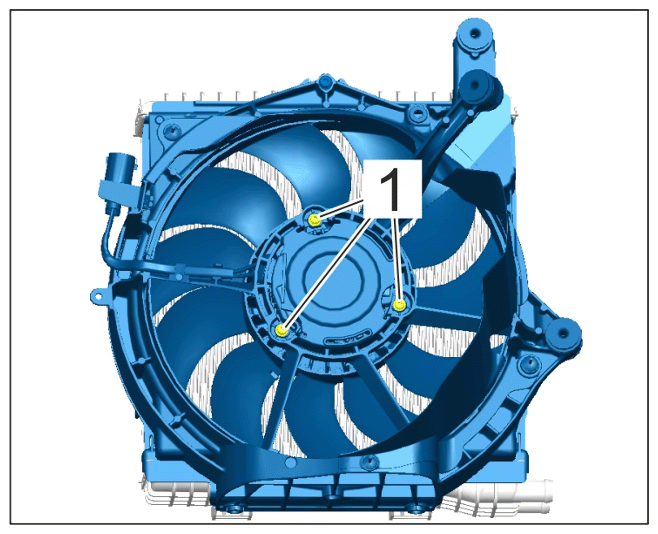

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric fan
Electric fan on cooling fan housing	Self-tapping screws - always replace	Tightening torque	5 Nm (3.5 ftlb.)

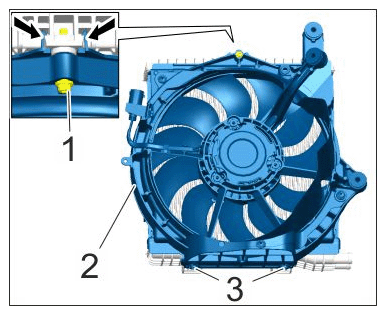

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening the electric fan
Radiator module to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation overview of radiator and electric fan
Distance from radiator to body	Item x	Adjustment value	10 mm

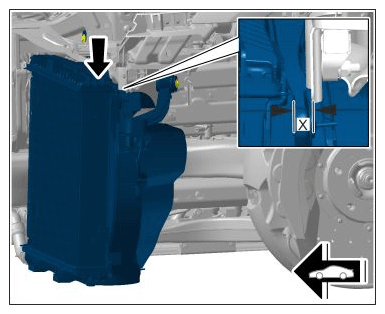

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Distance from radiator to body
