Cooling - Holder For Cooling Switch-Over Valve

Location Description Type Basic value Tolerance

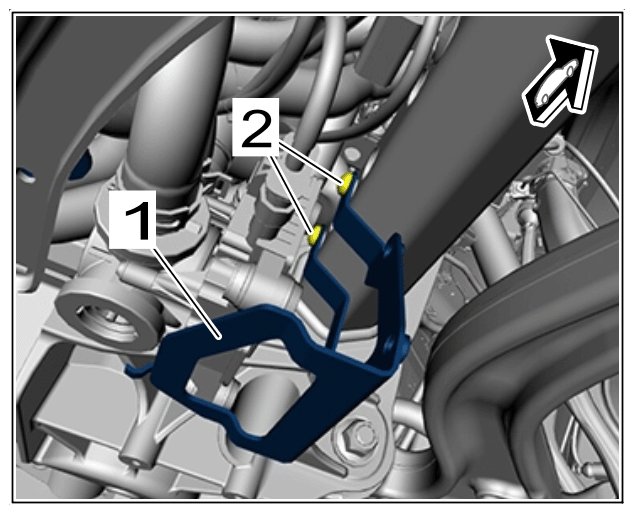

Holder for cooling switch-over valve (UVW1) Item 2/Screw, M6 x 16 Tightening torque 8 Nm (6 ftlb.)
G15550561Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Directional-control valve holder
