Cooling - All-Wheel Final Drive

Location	Description	Type	Basic value	Tolerance
Coolant line to all-wheel final drive	Item 3	Tightening torque	8 Nm (5.9 ftlb.)

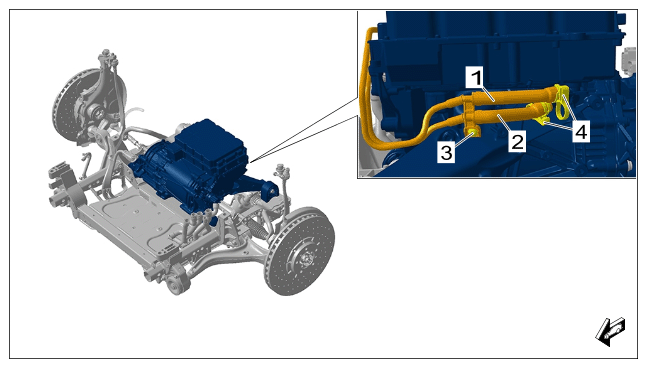

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Coolant lines for all-wheel final drive
Coolant support to all-wheel final drive	Item 2: Screw M6 x 14	Initial tightening	3 Nm (2.2 ftlb.)
Coolant support to all-wheel final drive	Item 2: Screw M6 x 14	Final tightening torque angle	60 °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

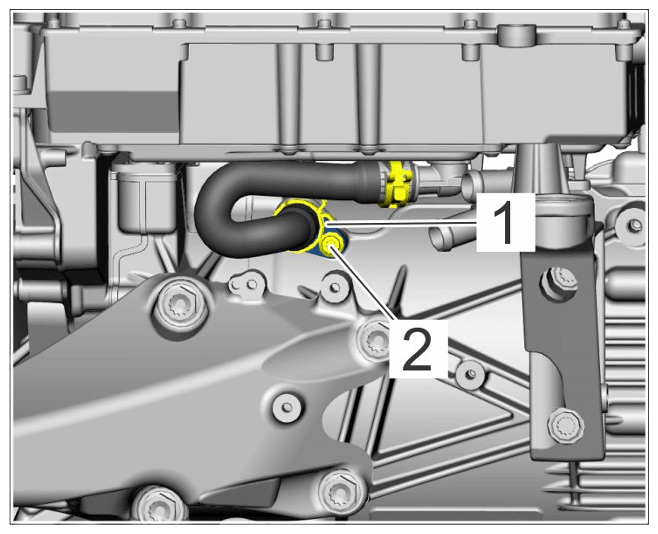

Coolant support to all-wheel final drive
