Technical Values

Location	Des..	Type	Basic value

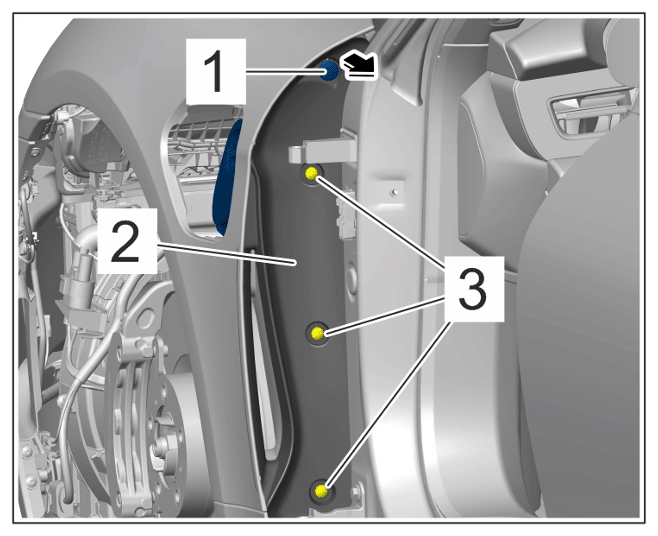

Screws securing wing trim panel to wing mounting rail	Item 3	Tightening torque	2.8 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing trim panel

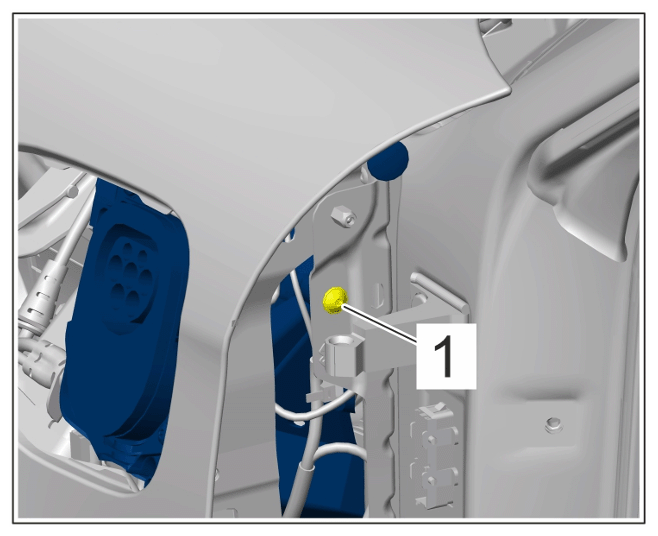

Screw securing left charging socket to wing mounting rail	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw

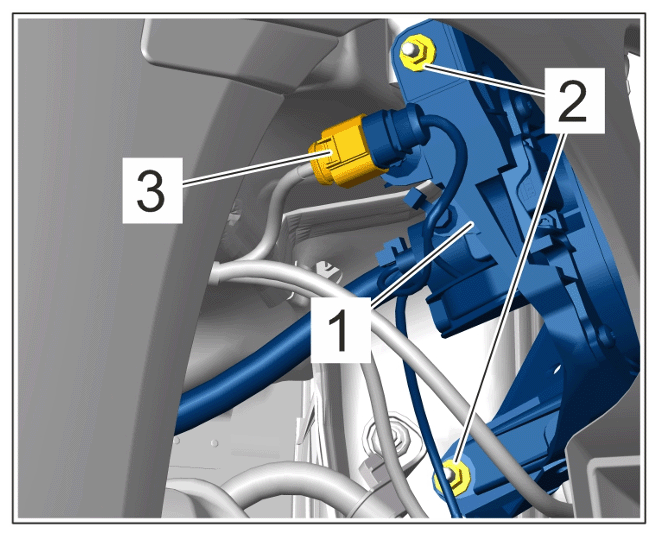

Nuts securing left charging socket to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Left charging socket

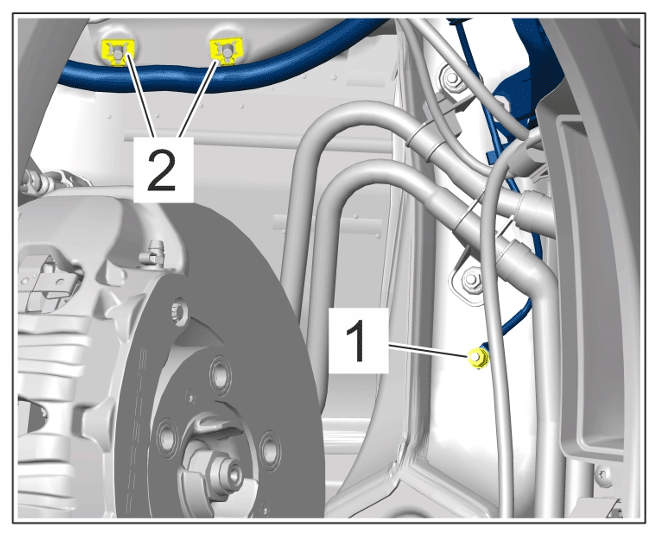

Nit securing shield connection to ground pin	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut
