Removing Left Charging Socket

Information

The number of electric plug connections and clips will vary depending on equipment.

1. Remove wing trim panel -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

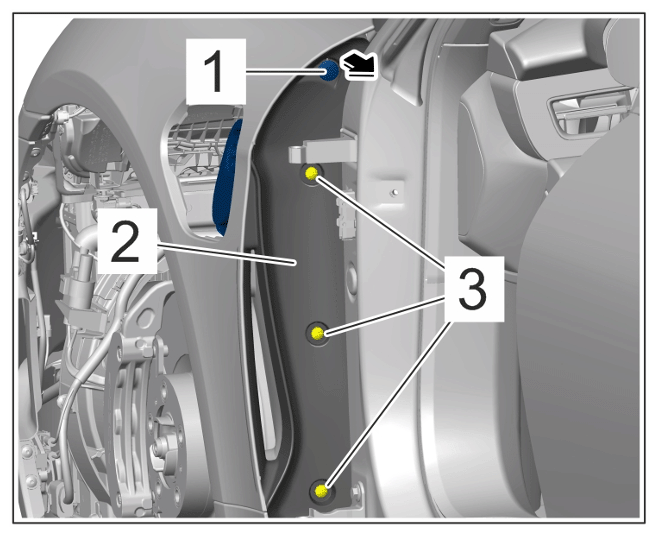

   Wing trim panel

   1. 1.1  Unclip pull knob -1-  (-Arrow-  ).
   2. 1.2  Unscrew screws -3-  .
   3. 1.3  Remove wing trim panel -2-  and feed out pull knob -1-

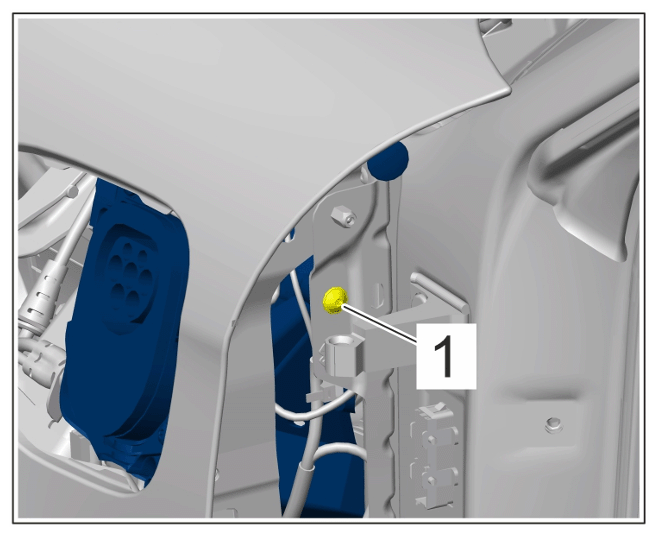

2. Unscrew screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

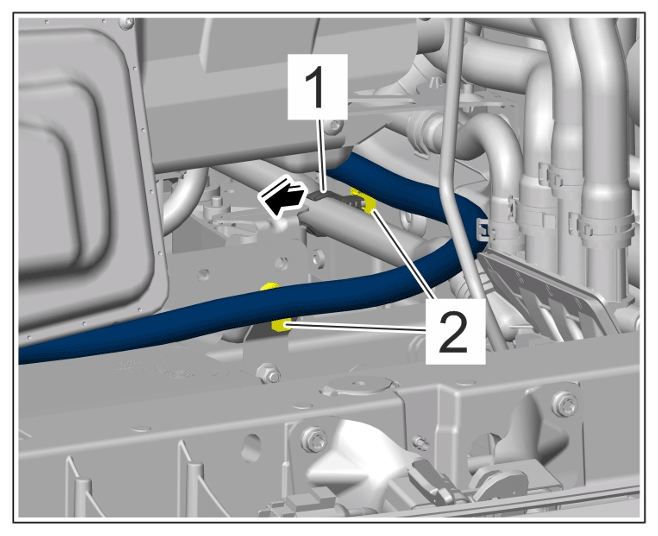

3. Release and disconnect electric plug connection -1-  and unclip clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

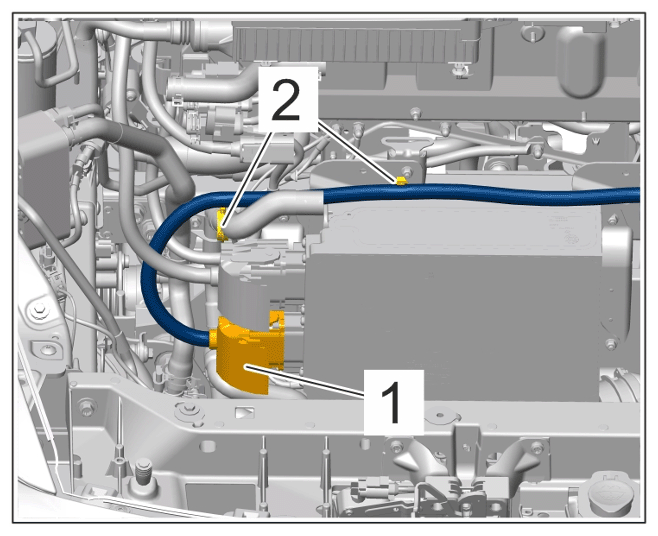

4. Pull off clamp -1-  (-Arrow-) and unclip clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

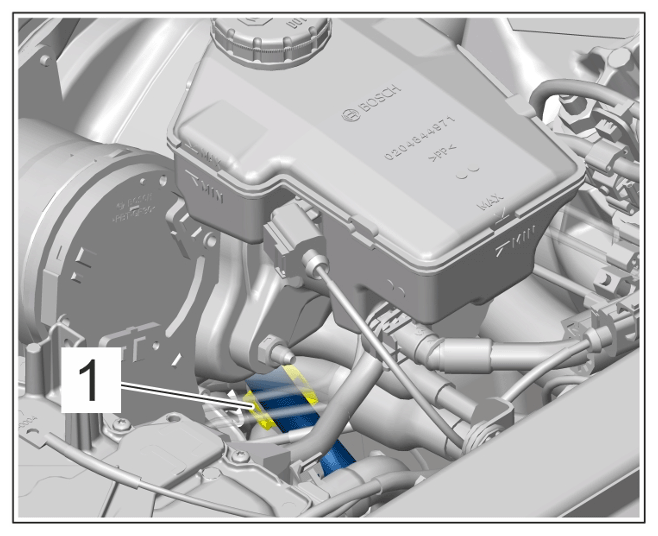

5. Loosen brake booster.

   > 477019 REMOVING AND INSTALLING BRAKE BOOSTER - on "Removing"

6. Unclip clip -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip

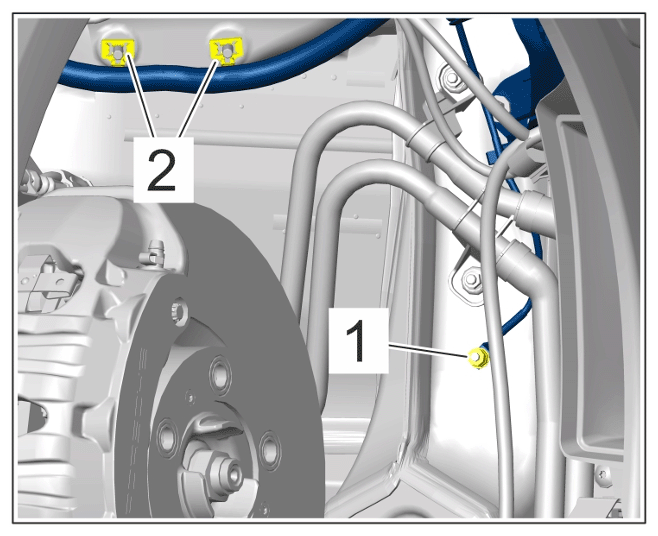

7. Unscrew nut -1-  and unclip clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nut

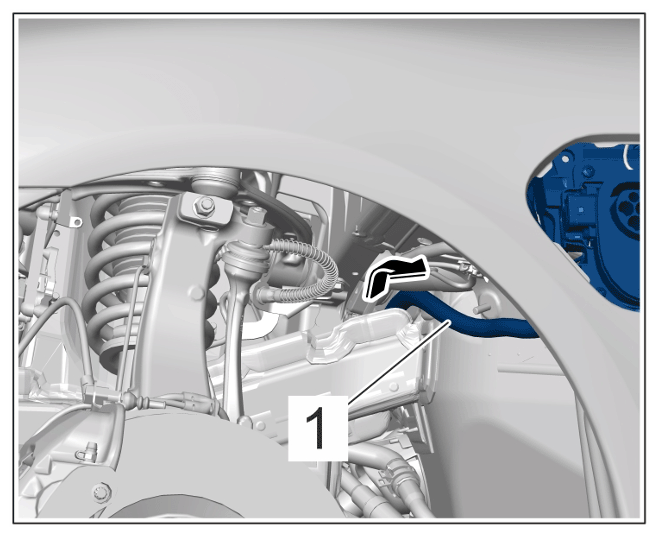

8. Feed electric line -1-  through the opening in the bodyshell -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

9. Loosen left charging socket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left charging socket

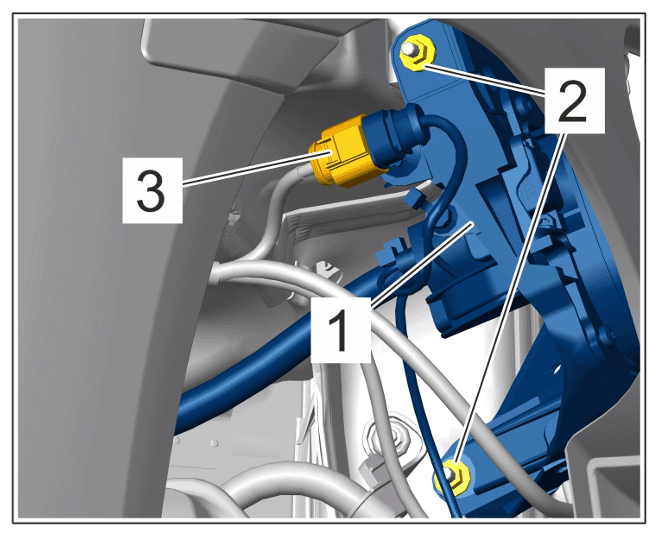

   1. 9.1  Release and disconnect electric plug connection -3-  .
   2. 9.2  Unscrew nuts -2-  .
   3. 9.3  Remove left charging socket -1-  .
10. Remove left charging socket.
