Removing Actuator For Left Charging Socket

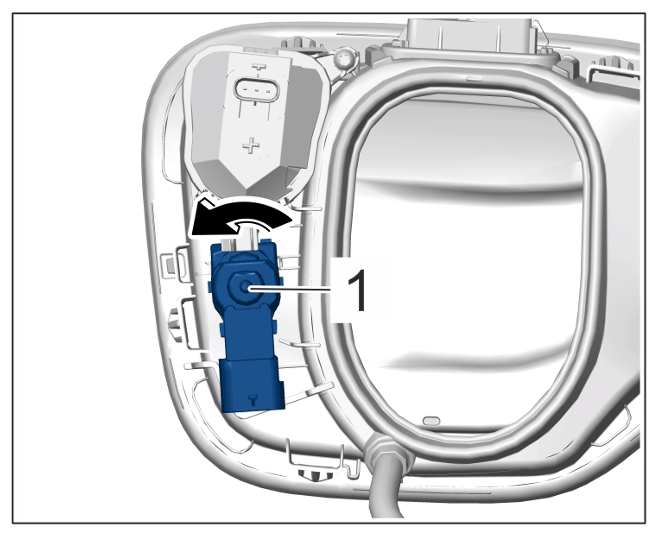

  1. Turn actuator for left charging socket -1-  90° (-arrow-  ) and remove it.
    G15551778Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Actuator for charging socket, left
