Removing Pilot Line Connector
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components. Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Unclip pilot line connector from guide on plenum panel.

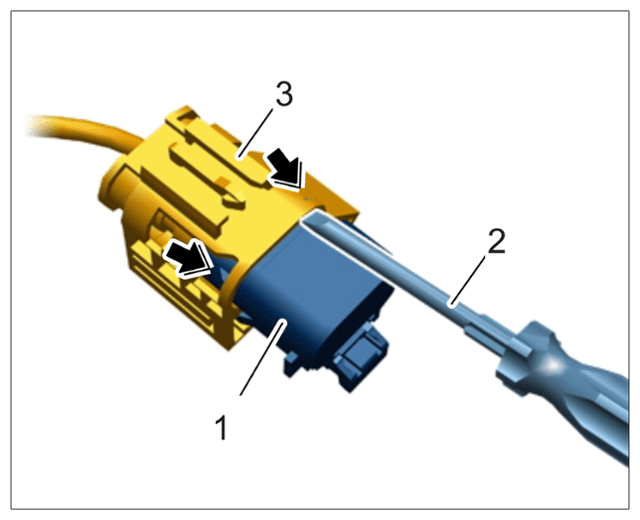

- Release cover -1-
using a suitable tool -2-
and remove it from the housing -3-
(-Arrows-
).
Cover on pilot line connector
- Loosen fabric adhesive tape on electric line at the end of the connector and cut it off.
- Release secondary lock -1-
using a suitable tool -2-
(-arrow-
).
Secondary lock on pilot line connector
Information
CAUTION: Risk of damage to locking lugs. - Release pins -1-
using press-out tool -2-
from > VAS 1978/35-20 - Release Tool Set
and pull them out carefully at the electric line -3-
.
Pilot line connector pins
