Remove Electric Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

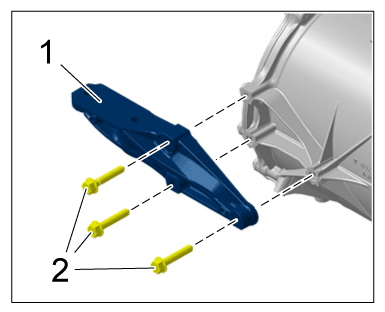

Bracket for electric motor, left

1. 1.1  Loosen and unscrew screws -2-  and remove brackets -1-  .
   CAUTION: Heavy components

   • Risk of squashing

     → Wear personal protective gear.

     → Get someone to help if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

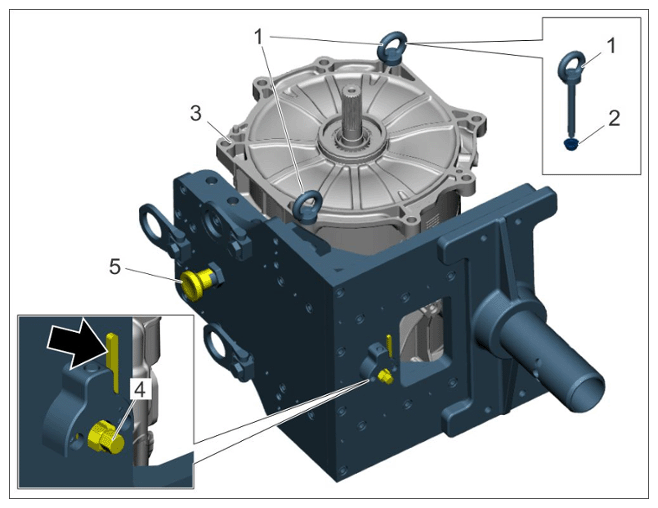

Electric motor on engine support

1. 2.1  Insert two > 9700 - transport eyebolts-1-  into the electric machine -3-  and secure using commercially available M10 nuts -2-  .
2. 2.2  Position a workshop crane with the > 2024B - lifting tackle  above the electric motor and hook it into the > 9700 - transport eyebolts  .
3. 2.3  Raise the workshop crane slightly to pre-tension the lifting equipment.
4. 2.4  Release locking mechanism -Arrow-  and turn tension screw -4-  anti-clockwise until the guide is sufficiently open.
5. 2.5  Pull out retaining pin -5-  and block it by turning it in pulled position.
6. 2.6  Lift up electric motor -3-  .
