Installing Electric Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

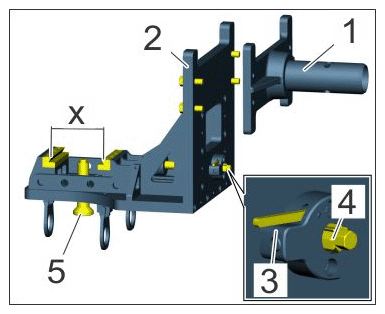

Retainer plate and engine support

1. 1.1  Release locking mechanism -3-  and turn tension screw -4-  anti-clockwise until the guide is open by about 115 mm -x-  .
2. 1.2  Pull out retaining pin -5-  and turn to lock in the pulled position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

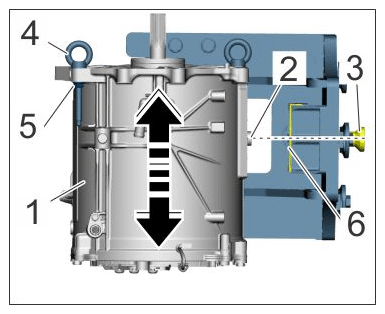

Positioning the electric motor

1. 2.1  Insert two > 9700 - transport eyebolts-4-  into electric motor -1-  and secure using commercially available M10 nuts -5-  .
2. 2.2  Hook > 2024B - lifting tackle  into the > 9700 - transport eyebolt-4-  .
3. 2.3  Adjust the height of the electric motor -1-  using a workshop crane -Arrows-  and make sure that the bore -2-  is aligned with the retaining pin -3-  .
4. 2.4  Fit electric motor -1-  on the guide block -5-  at the side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

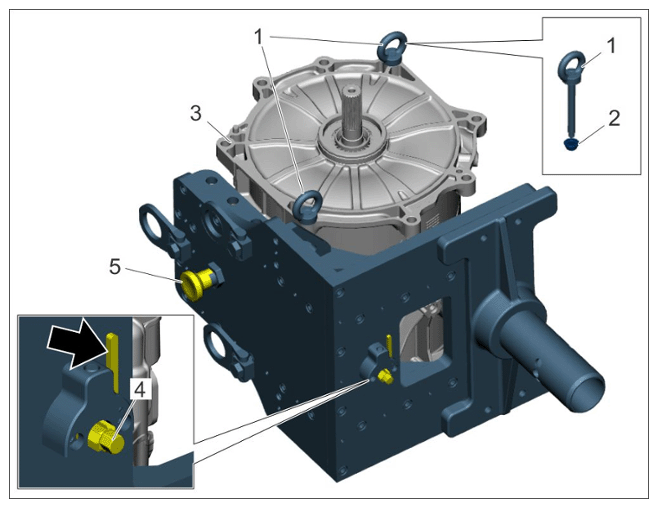

Electric motor on engine support

1. 3.1  Turn the tension screw -4-  clockwise and tighten the guide block slightly.
2. 3.2  Release retaining pin -5-  and engage it in the bore.
3. 3.3  Turn tension screw -4-  clockwise and tighten to > Tightening torque 17 Nm (13 ftlb.)  .
4. 3.4  Lower the workshop crane.
5. 3.5  Check that the electric motor is fitted securely to the engine bracket.
6. 3.6  Remove two > 9700 - transport eyebolts-1-  .
7. 3.7  Remove workshop crane from the work area.
