Removing Electric Motor With Automatic Transmission (Rear-Axle Module) From Engine Support

Information

For better clarity, the > VAS 6095A/1-23 - engine support  and > VAS 6095A - engine and gearbox bracket  are not shown in the illustration below.

1. Raise the rear-axle module -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

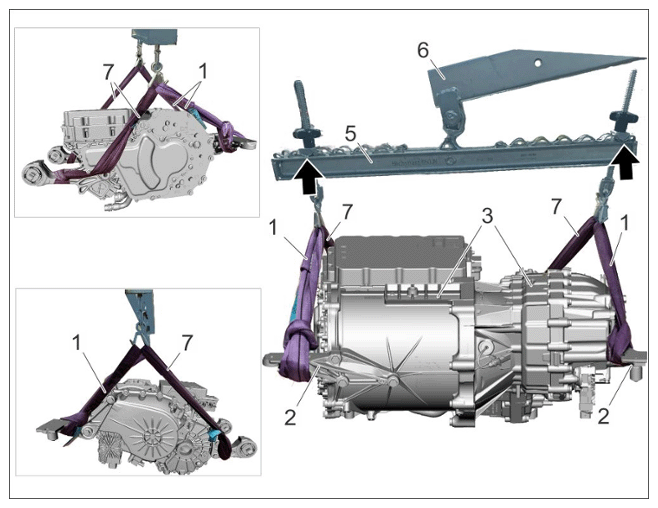

   Lifting the rear-axle module with round slings and workshop crane

   1. 1.1  Fasten two > VAS 501 017 - round slings-7-  and two > VAS 501 015 - round slings-1-  to the brackets -2-as shown.
   2. 1.2  Position > 3033 - lifting tackle-5-  above the rear-axle module using a > VAS 6100 - workshop crane-6-  .
   3. 1.3  Engage round slings -1 and 7-  in the spring hooks of the > 3033 - lifting tackle-5-  .
   4. 1.4  Check the position of the spindles -Arrows-  and adjust the height by turning the adjusting handles.
   5. 1.5  Pre-tension round slings -1 and 7-  slightly by raising the workshop crane.
2. Release the engine support and remove the rear-axle module.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

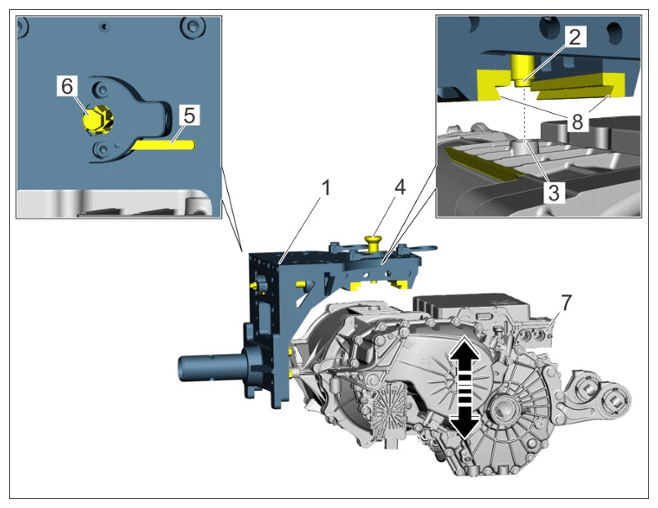

   Engine support to electric motor

   1. 2.1  Release locking mechanism -6-  and turn tension screw -6-  anti-clockwise until the guide is sufficiently open.
   2. 2.2  Pull out retaining pin -6-  and block it by turning it in pulled position.
   3. 2.3  Carefully lower the rear-axle module -7-Arrows-  and remove it from the work area using the workshop crane.
