Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws High-voltage line for power electronics Tightening torque 8 Nm (5.9 ftlb.)

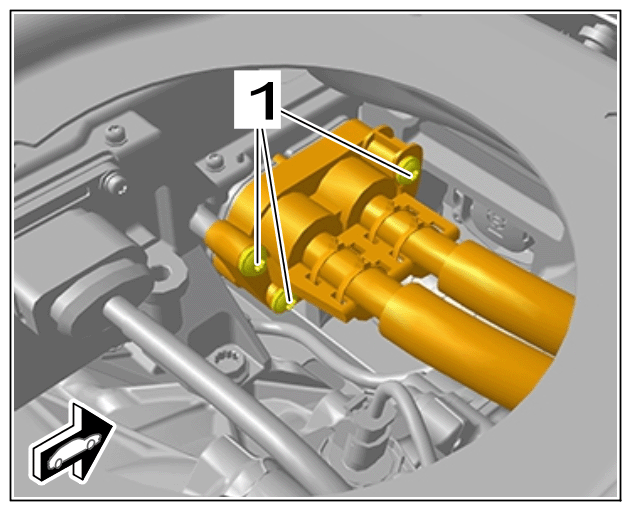

G15551625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

High-voltage line for power electronics
