Removing Electric Connection For Rear Power Electronics
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.
→ Observe general warning notes for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- loosen rear loadspace floor and remove it.
> 700619 REMOVING AND INSTALLING TRIM PANEL FOR REAR LUGGAGE COMPARTMENT

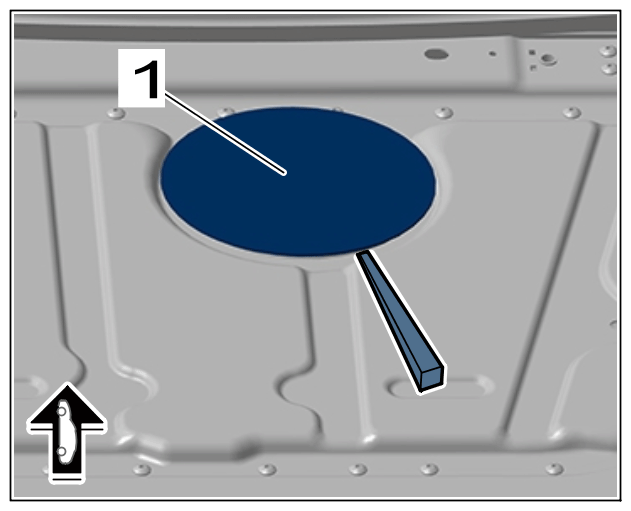

- Lift up body cover -1-
to allow access to the high-voltage line for the electric motor at the rear using a plastic wedge and remove it.
Removing body cover

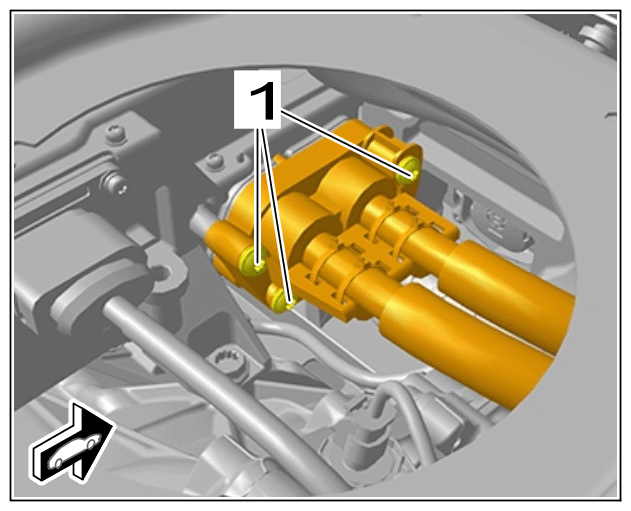

- Loosen the three fastening screws -1-
for the high-voltage line connection at the rear power electronics and unscrew them until the thread of the fastening screws is visible.
High-voltage line on rear power electronics
- Disconnect the high-voltage connector from the rear power electronics.
