WM, 278919 Removing And Installing Electric Drive Motor: Tools

Tool denomination Type Tool number Image

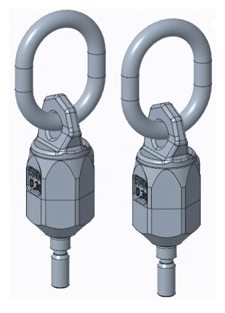

lifting devices Vehicle-specific workshop equipment > T90026
G15551571Courtesy of PORSCHE CARS NORTH AMERICA, INC.
round slings Vehicle-specific workshop equipment > VAS 501 015
G15551572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

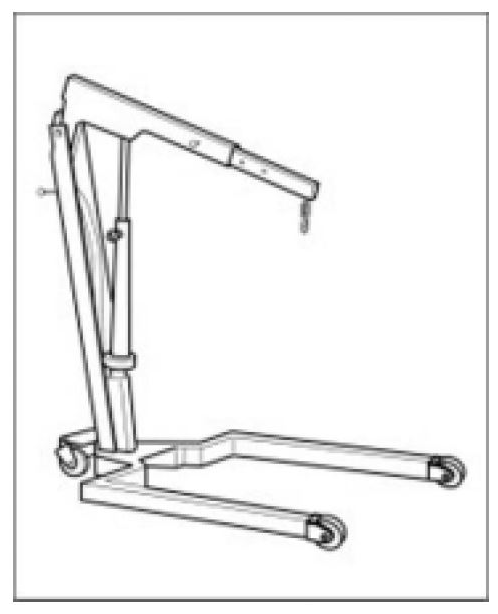

workshop crane General workshop equipment > VAS 6100
G15551573Courtesy of PORSCHE CARS NORTH AMERICA, INC.
support plate VW tool > VW309A
G15551574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

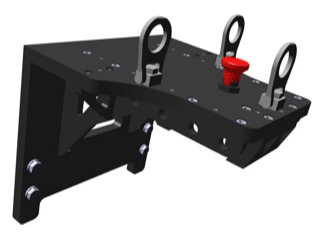

engine bracket Vehicle-specific workshop equipment > VAS 6095A/1-23
G15551575Courtesy of PORSCHE CARS NORTH AMERICA, INC.
engine and gearbox bracket General workshop equipment > VAS 6095A
G15551576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
lifting tackle VW tool > 2024B
G15551577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
