Technical Values For Cell Block Module

Location	Description	Type	Basic value
Module connector on module	Module connectors must be replaced following removal	Tightening torque	6 Nm

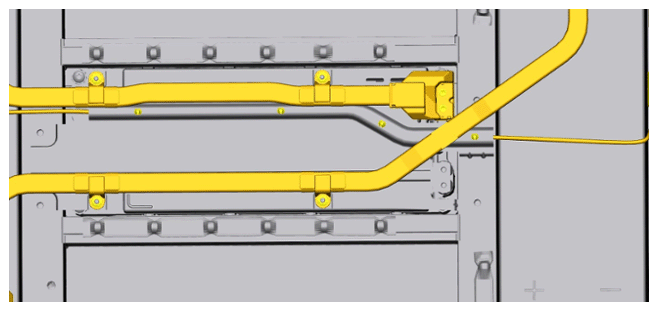

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Module connector on module
Spacer sleeve on high-voltage battery frame		Tightening torque	8 Nm

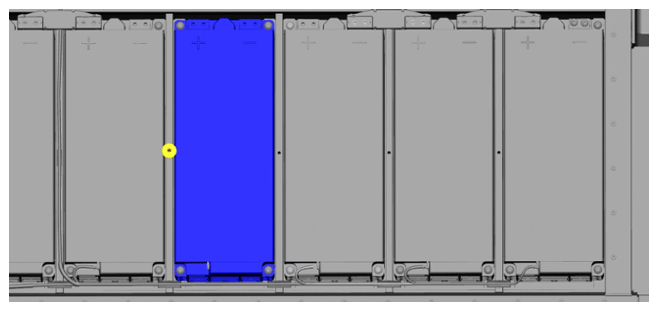

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spacer sleeve
Cover for wire harness on high-voltage battery		Tightening torque	8 Nm

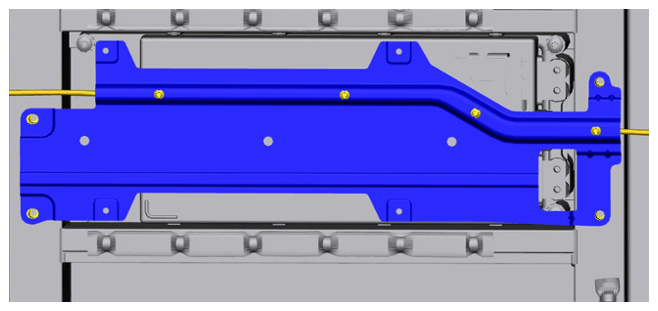

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover for wire harness
Module connector at the module connector bracket	Module connectors must be replaced following removal	Tightening torque	4.5 Nm

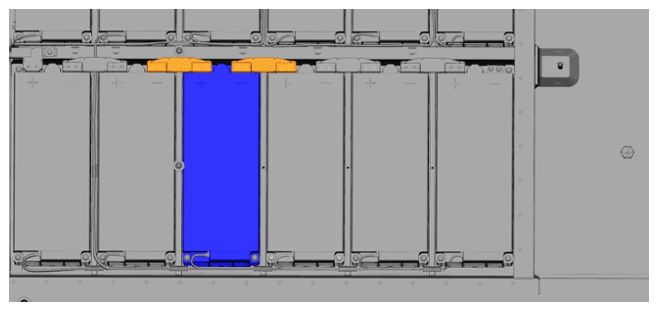

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Module connector bracket
Module connector bracket on high-voltage battery		Tightening torque	8 Nm

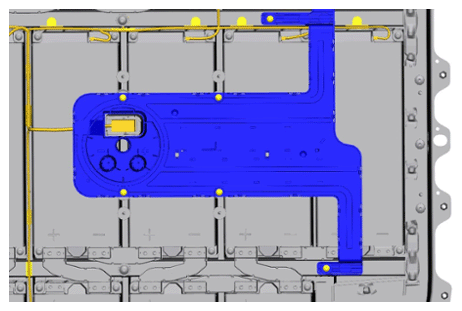

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Module connector bracket
High-voltage battery module	tighten in two steps in diagonally opposite sequence. Level 1	Tightening torque	5 Nm

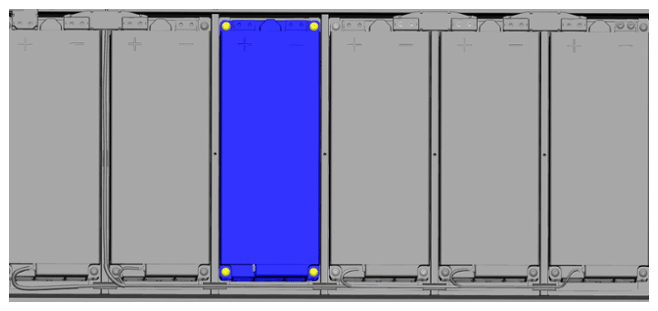

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for module
High-voltage battery module	tighten in two steps in diagonally opposite sequence. Level 2	Tightening torque	8 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for module
