WM, 270855 Replacing Cell Block Module: Information

WARNING: Incorrect handling of high-voltage components

Electric shock
Risk of short circuit
Risk of fire
Risk of explosion
→ Only appropriately trained and authorized persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated tool set , when working on these components. Observe general warning notes for working on the high-voltage vehicle electrical system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE VEHICLE ELECTRICAL SYSTEM

The Workshop Manual instructions for removing and installing a module is divided into 7 module groups.

Always choose the required module group for the module to be replaced.

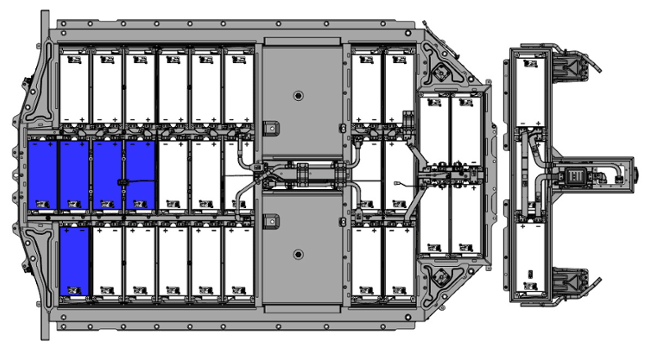

G15551232

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 1

G15551233

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 2

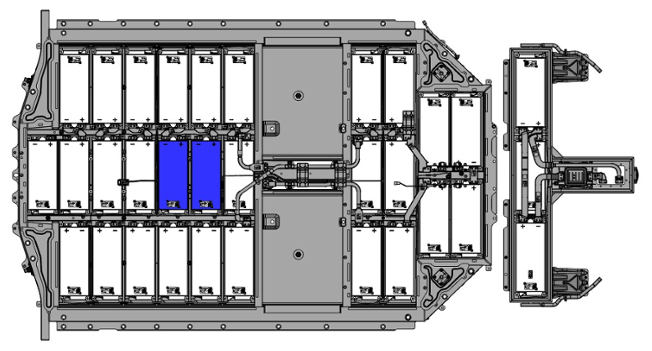

G15551234

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 3

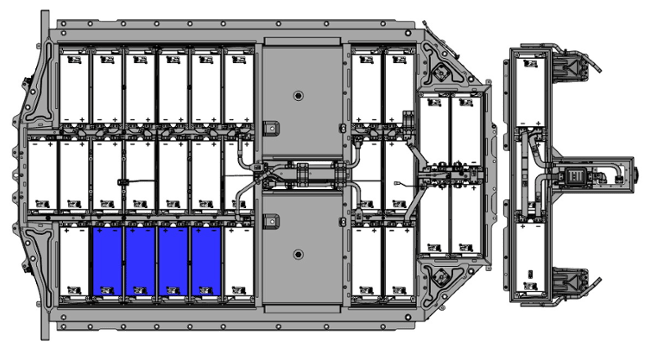

G15551235

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 4

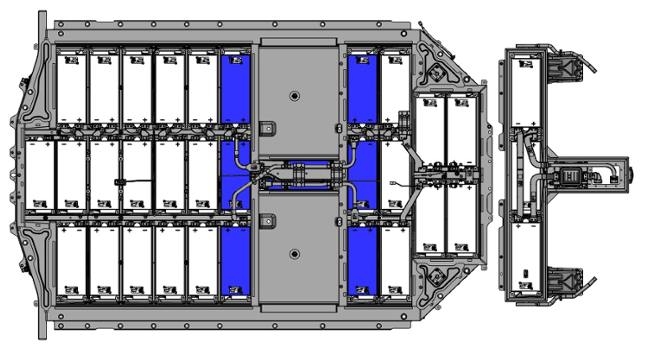

G15551236

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 5

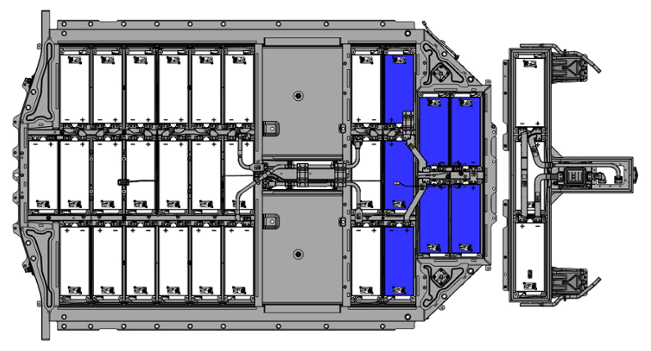

G15551237

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 6

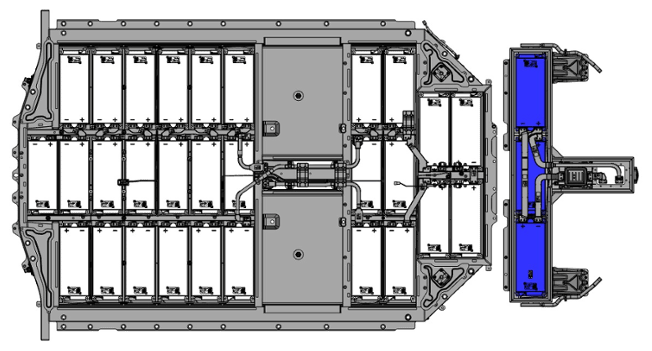

G15551238

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Module group 7
