Removing Supports For Level 2

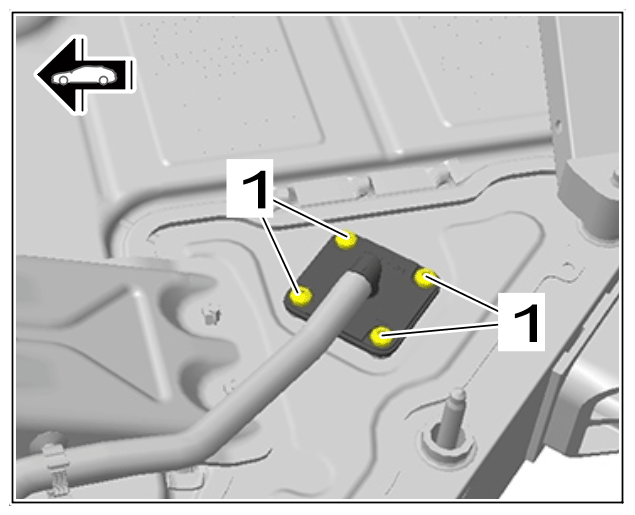

Unscrew the four fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing fastening screws

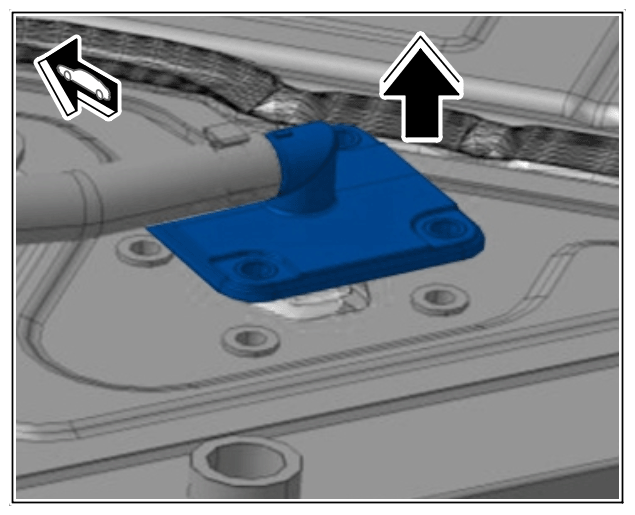

Lift the supports -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lifting supports

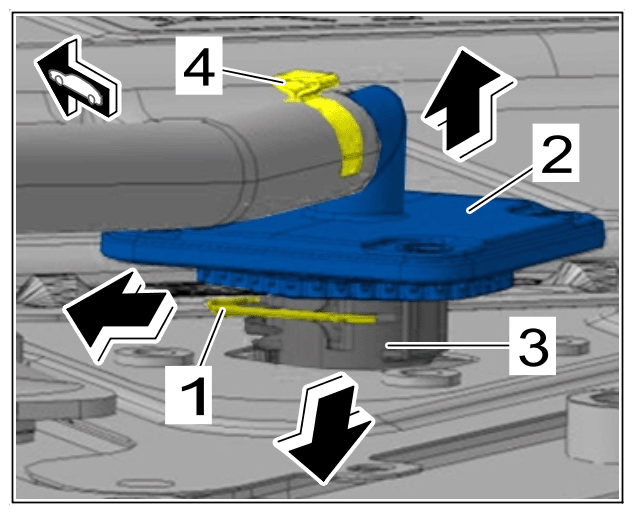

Loosen the spring -1- using a screwdriver and disconnect the supports -2- from the hose connection -3- (hold hose connection tightly or secure it).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting hose connection
Open hose clamp -4- using pliers and pull the coolant hose off the supports -2-
