Removing Supports For HV Battery Cooling

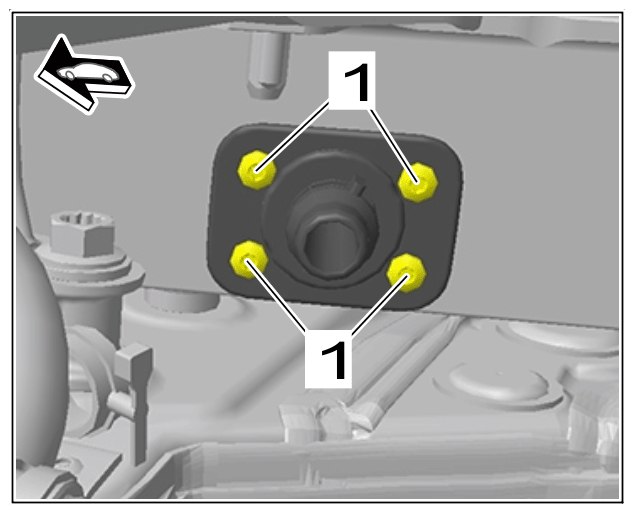

Unscrew the four fastening screws -1- for the supports for HV battery cooling.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws

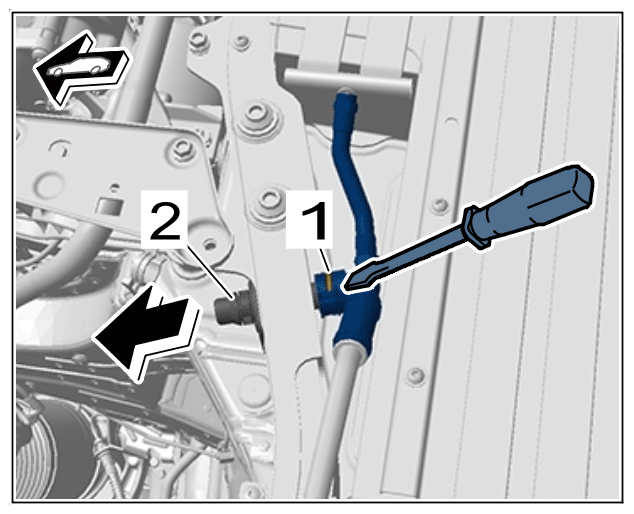

Release -1- on the cooling line using a screwdriver.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing cooling line
Pull supports -2- for HV battery cooling out of the high-voltage battery frame.
