Preliminary Work

  1. Remove high-voltage battery.

    > 270819 REMOVING AND INSTALLING HIGH-VOLTAGE BATTERY

  2. Remove service cover for front cooling -1-  . For instructions, see > 270819 REMOVING AND INSTALLING HIGH-VOLTAGE BATTERY COVER

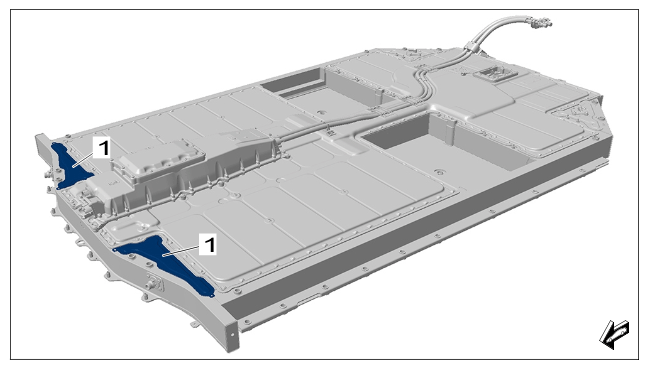

    G15550727Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Service cover on front cooling system



  1. Remove high-voltage battery.

    > 270819 REMOVING AND INSTALLING HIGH-VOLTAGE BATTERY
