Installing Supports For HV Battery Cooling

  1. Position supports -2-  for HV battery cooling and press on coolant line until the coolant line lock -1-  engages securely.

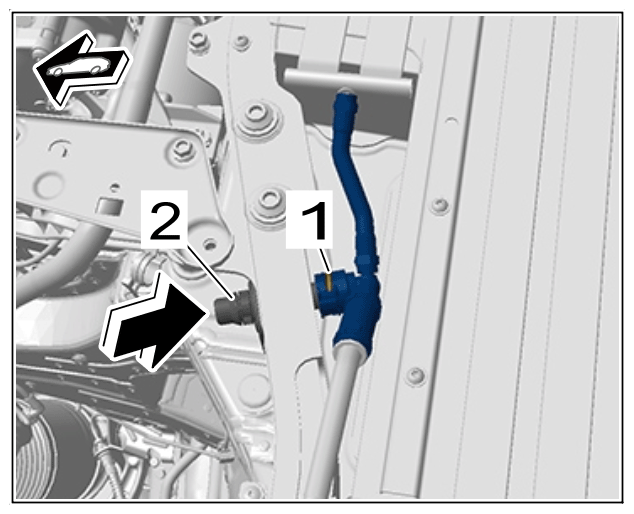

    G15550730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing supports for HV battery cooling

  2. Visually inspect the joint.
  3. Check joint to ensure that it is connected correctly.
  4. Position supports for HV battery cooling on the battery frame and secure it by tightening the four fastening screws > Tightening torque 8 Nm (6 ftlb.)  .
