Technical Values

Location	Description	Type	Basic value
Front battery retaining bracket to rear battery retaining bracket		Tightening torque	8 Nm (5.9 ftlb.)

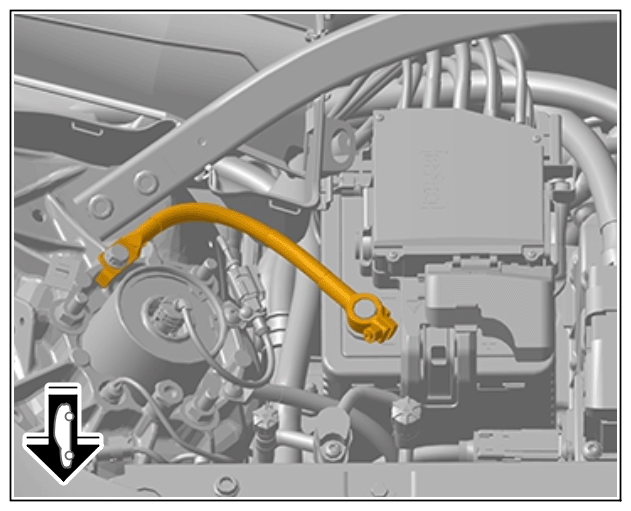

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining bracket
Positive cable to power distributor		Tightening torque	16 Nm (11.8 ftlb.)

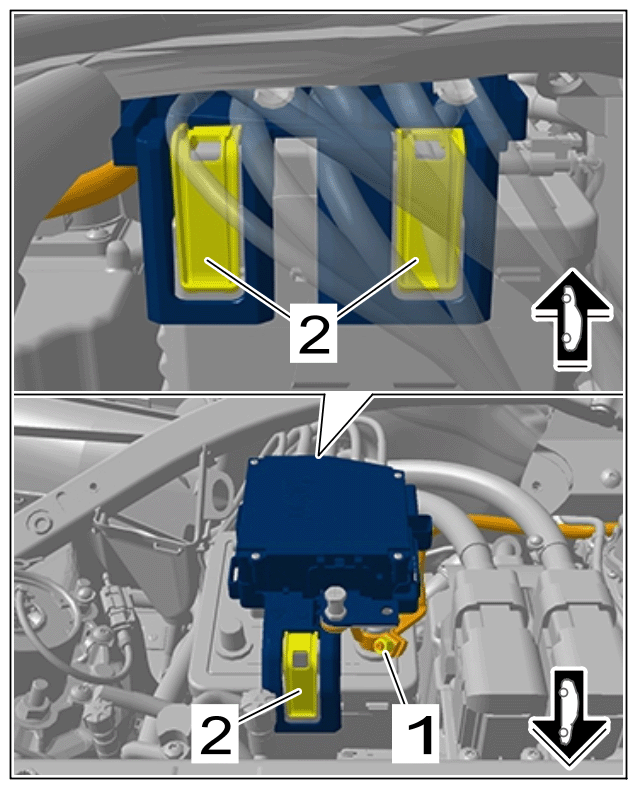

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cable for emergency power supply
Terminal clamp on battery positive terminal	Item 1	Tightening torque	5 Nm (3.7 ftlb.)

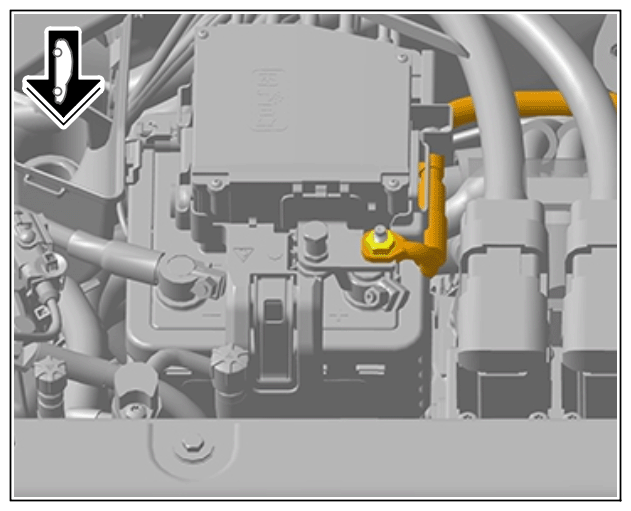

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Current distributor holder
Terminal clamp to battery negative terminal		Tightening torque	5 Nm (3.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery negative terminal
