Removing Vehicle Electrical System Battery

Information

Switch off all loads, end operational readiness on the vehicle and keep transmitter key outside of the transmission range (at least 5 meters).

1. Observe specifications for handling 12-volt lithium-ion batteries.

   > Refer to the appropriate service information. .

   > 2X00IN HANDLING LITHIUM-ION BATTERIES

   Open door window on driver side.

2. Loosen battery negative terminal connection and disconnect ground line from the battery.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

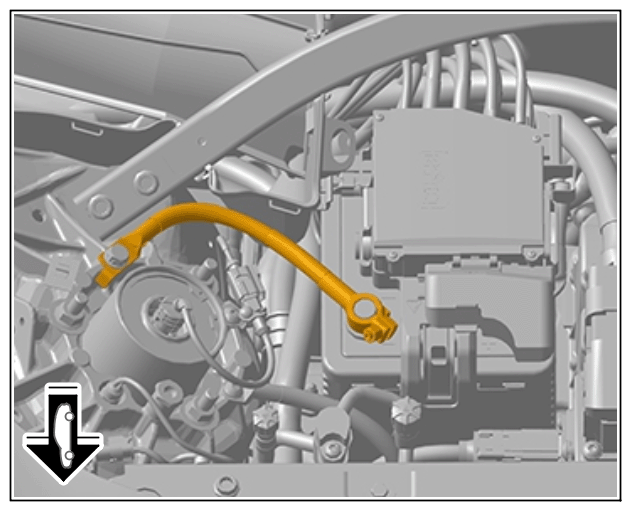

   Battery negative terminal

3. Release and disconnect LIN connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

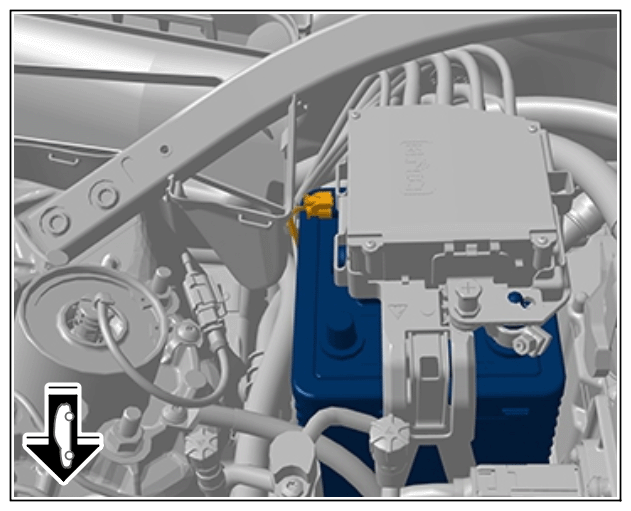

   LIN connection

4. Unclip cover on emergency power connection and pull it up and out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

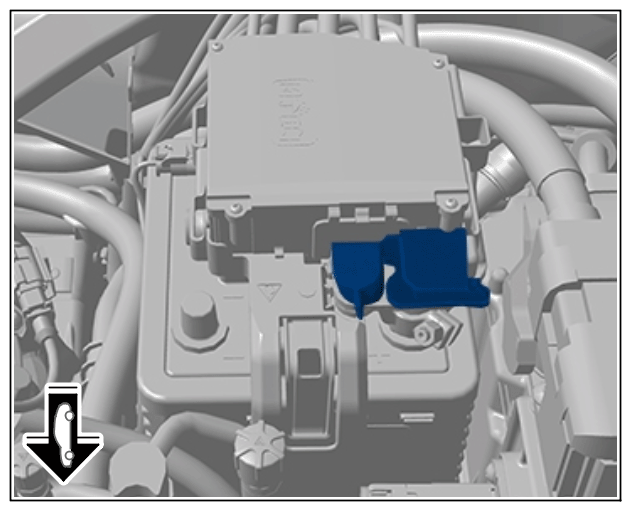

   Cover for emergency power connection

5. Unscrew positive line for current distributor and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

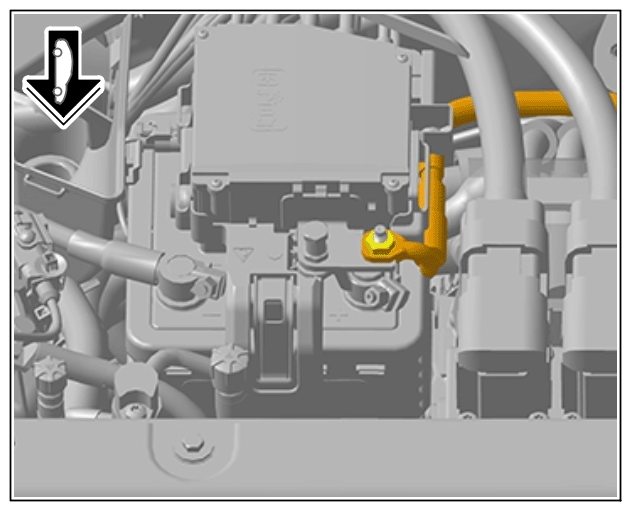

   Positive line for current distributor

6. Loosen current distributor holder and move it to the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

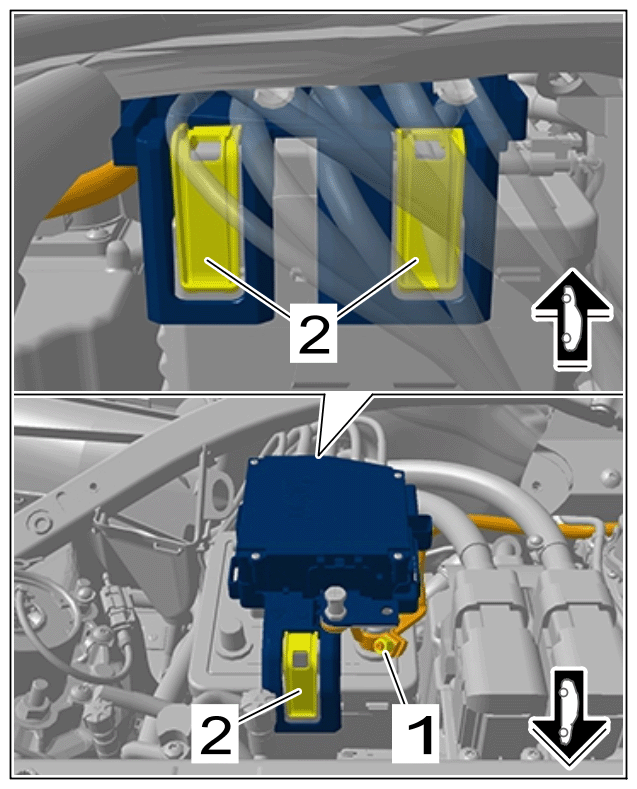

   Current distributor holder

   1. 6.1  Loosen nut on positive line at the battery -1-  .
   2. 6.2  Unclip current distributor holder -2-  .
   3. 6.3  Move current distributor with holder aside to the rear.
7. Unscrew screw on upper battery retaining bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

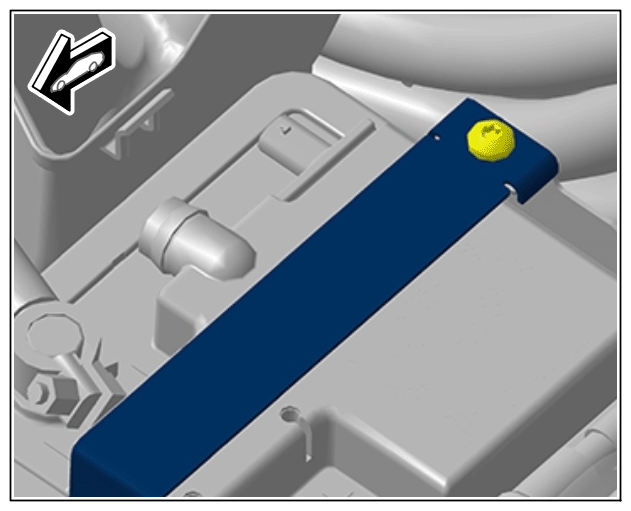

   Upper retaining bracket

8. Unscrew screws on front battery retaining bracket and remove front battery retaining bracket.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

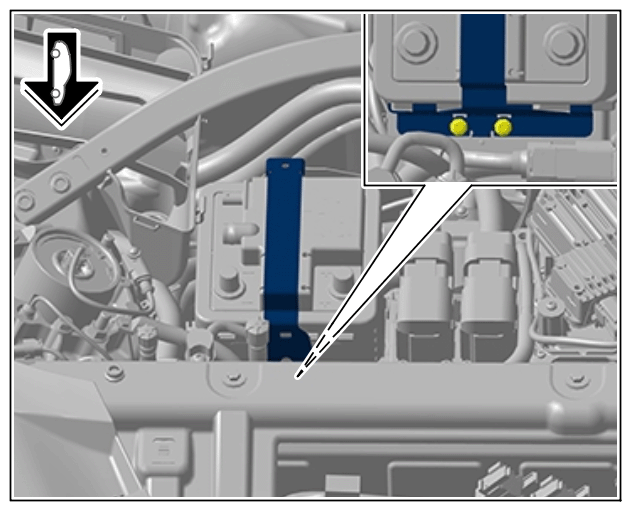

   Front retaining bracket

9. Carefully remove the battery.
