Preliminary Work For Packing 12-Volt Lithium-Ion Battery

  1. Remove the critical battery from the vehicle using > VAS 6883 - Insulated Tool Set  (> 270619 REMOVING AND INSTALLING VEHICLE ELECTRICAL SYSTEM BATTERY ) and place it on a suitable base.
  2. Fit protection caps on battery terminals.

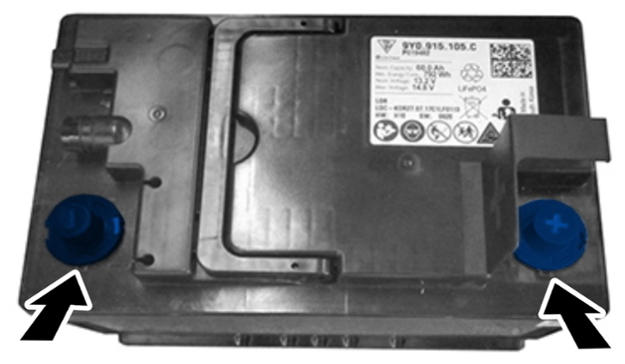

G15552067Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protection caps on battery terminals
