Servo Motor

Location Description Type Basic value Tolerance
Screw securing servo motor to heating/fresh-air unit

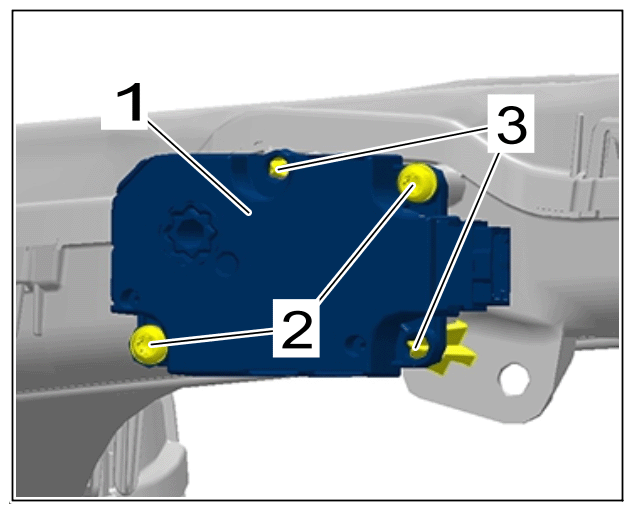

G15566071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for servo motor (shown as an example on right door-window air vent, horizontal)		 Item 2 Tightening torque 1.5 Nm (1 ftlb.)
