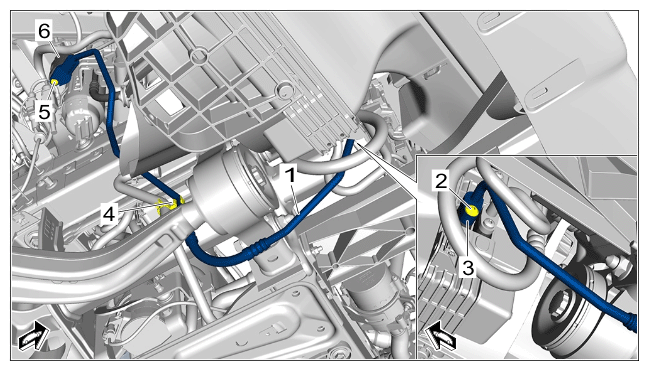

Refrigerant Line Between Condenser And Desiccator (Section From Condenser To Check Valve)

Location	Description	Type	Basic value	Tolerance
Screw securing refrigerant line to check valve Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line between condenser and desiccator	Item 5	Tightening torque	8 Nm (6 ftlb.)
Screw securing refrigerant line to condenser Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line between condenser and desiccator	Item 2	Tightening torque	8 Nm (6 ftlb.)
