Refrigerant Line Between Compressor And Condenser (Section From Valve (Eav3) To Condenser)

Location	Description	Type	Basic value	Tolerance

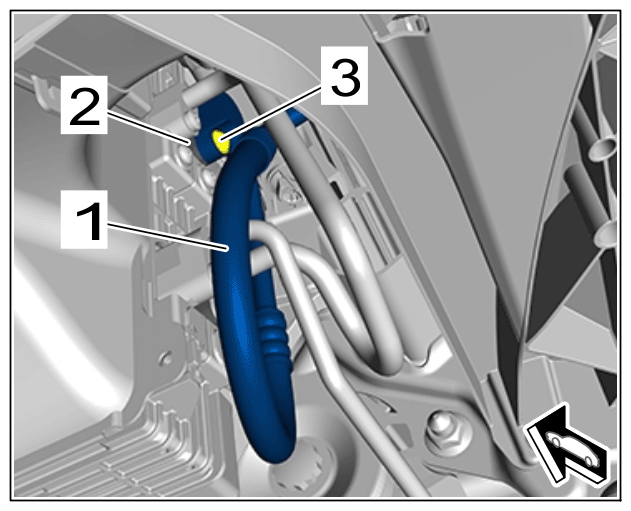

Screw securing refrigerant line to condenser Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line between compressor and condenser	Item 3	Tightening torque	8 Nm (6 ftlb.)

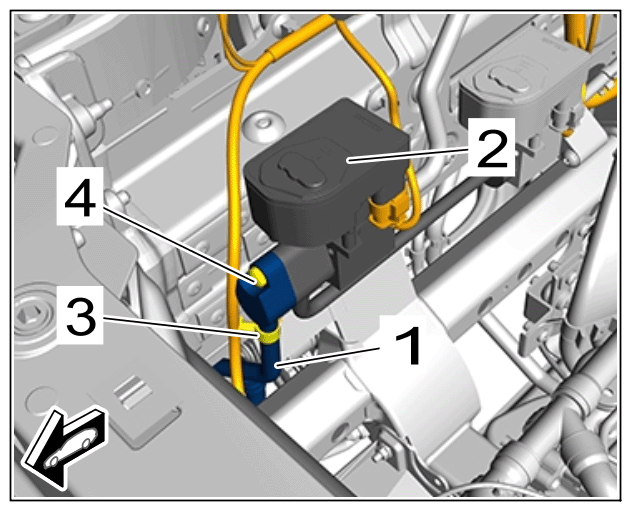

Screw securing refrigerant line to valve (EAV3) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line between compressor and shut-off valve	Screw to refrigerant line from valve (AVK5)	Tightening torque	8 Nm (6 ftlb.)
