Refrigerant Line Between Compressor And Condenser (Section From Heat Exchanger (Icond) To Valves (Eav2 And Eav3))

Location	Description	Type	Basic value	Tolerance

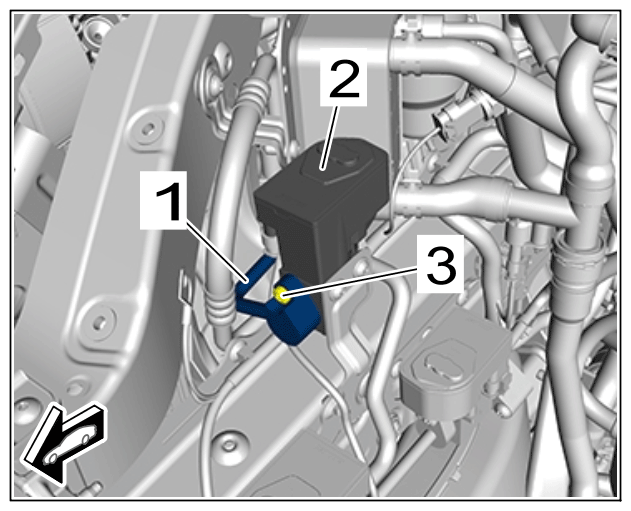

Screw securing refrigerant line (from valve (EAV2) to heat exchanger (ICond)) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line section from air-conditioning compressor to heat exchanger (ICond)	Item 3	Tightening torque	8 Nm (6 ftlb.)

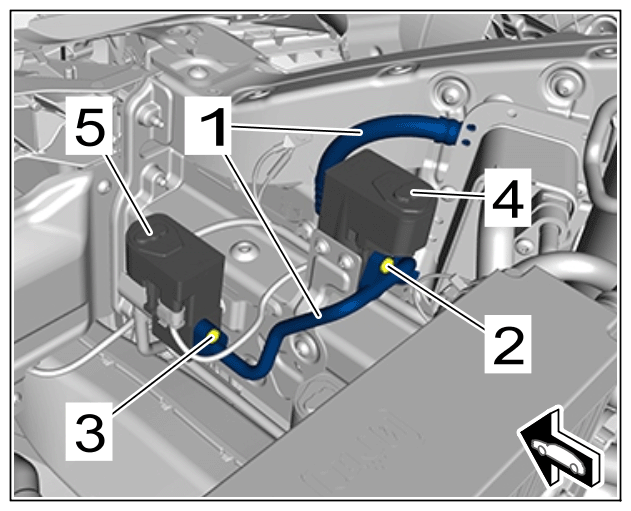

Screws securing refrigerant line to valve EAV2 and EAV3	Item 2 and 3	Tightening torque	8 Nm (6 ftlb.)

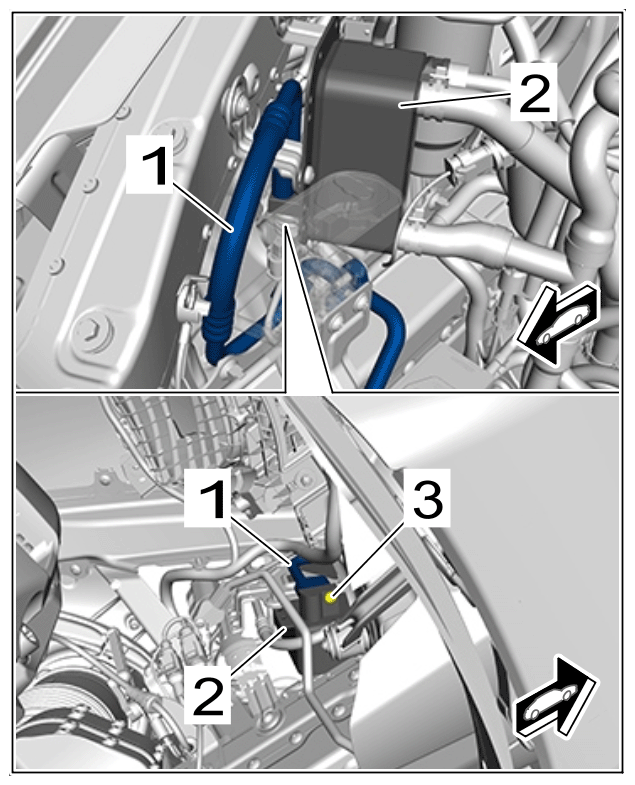

Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Refrigerant line section from heat exchanger (ICond) to shut-off valve Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Refrigerant line on shut-off valve
