Electric Air-Conditioning Compressor

Location	Description	Type	Basic value
Screw securing refrigerant line to electric air-conditioning compressor	Item 3	Tightening torque	20 Nm (15 ftlb.)

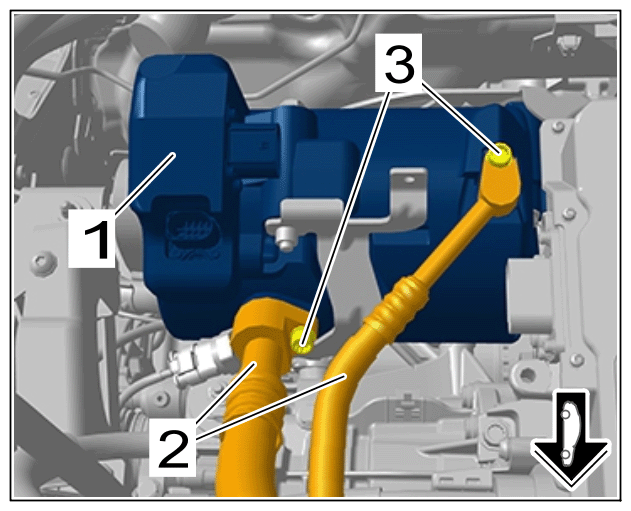

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant lines on air-conditioning compressor
Screw securing electric air-conditioning compressor to holder	Item 4	Tightening torque	20 Nm (15 ftlb.)

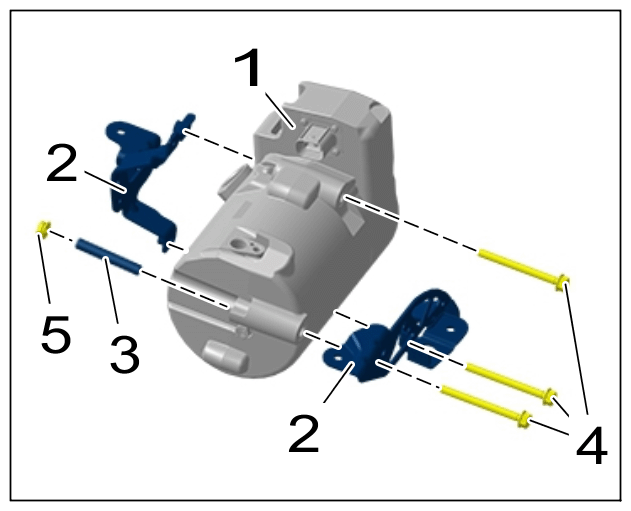

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder on air-conditioning compressor
Screw securing decoupling element to transmission housing retainer	Item 3	Tightening torque	12 Nm (9 ftlb.)

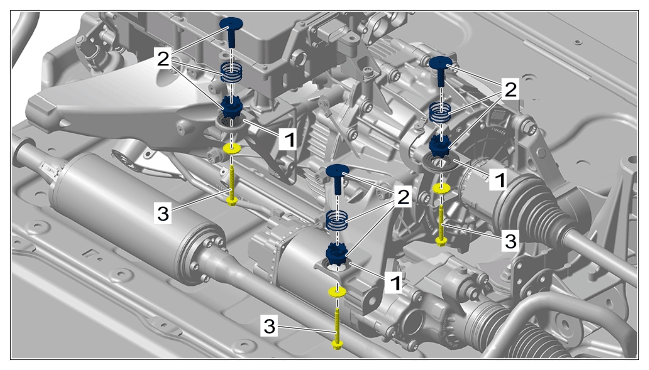

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Decoupling element on transmission housing retainer
Nut securing holder for electric air-conditioning compressor to decoupling element	Item 3	Tightening torque	8 Nm (6 ftlb.)

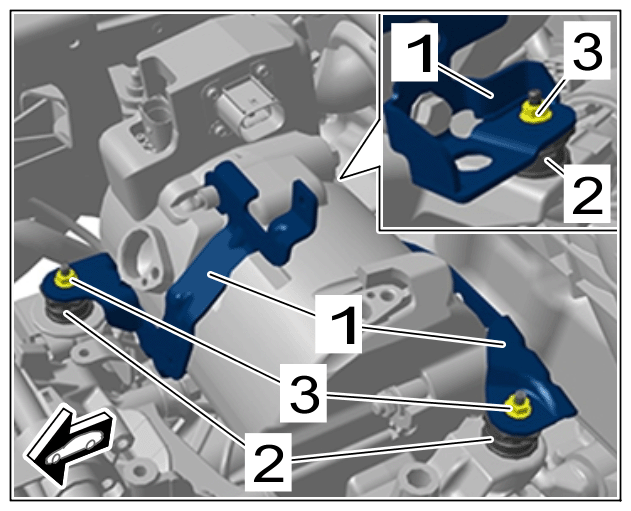

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric air-conditioning compressor holder to decoupling element
Screw securing equipotential bonding line to electric air-conditioning compressor	Item 3	Tightening torque	8 Nm (6 ftlb.)

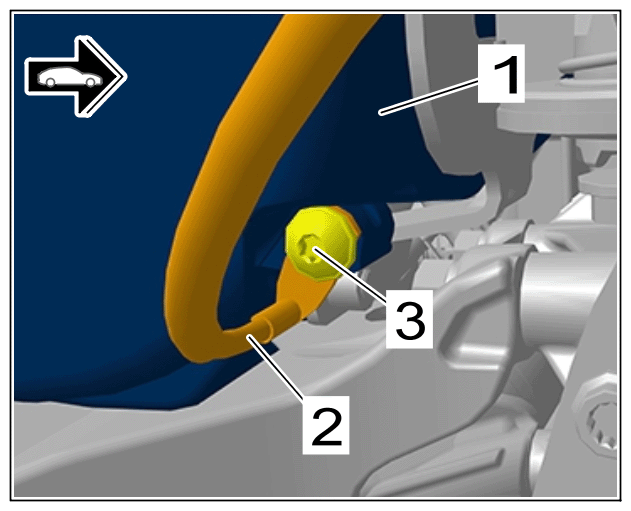

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Equipotential bonding line to air-conditioning compressor
