Technical Values - Service Information 87 - Air Conditioning: Desiccator

Location	Description	Type	Basic value	Tolerance
Screw securing refrigerant line to desiccator Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant lines to desiccator	Item 3	Tightening torque	8 Nm (6 ftlb.)

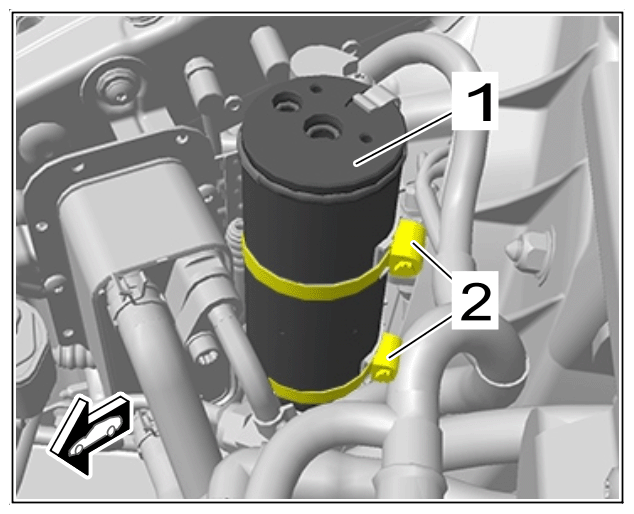

Hose clamp securing desiccator to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw-type clamps on desiccator	Item 2	Tightening torque	6 Nm (4.5 ftlb.)

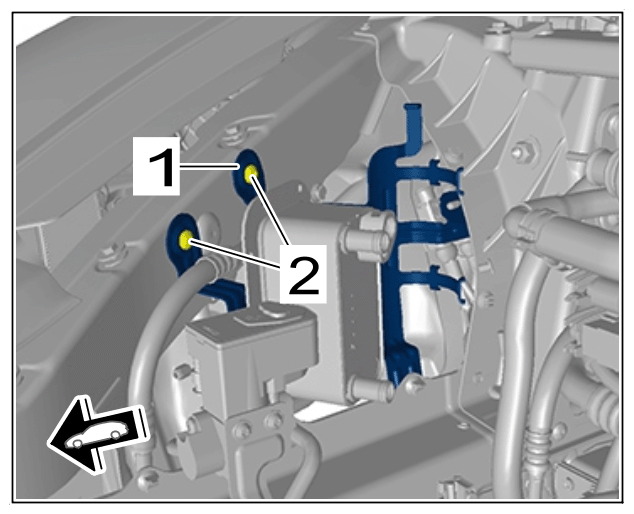

Screw securing heat exchanger (Icond)/desiccator holder to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat exchanger holder	Item 2	Tightening torque	8 Nm (6 ftlb)
