8X Air Conditioning - General -- Y1A - TAYCAN (Y1A)
>>
WM, 8X00IN Technical Values - Air Conditioning
>>
Technical Values - Service Information 85 - Ventilation
>>

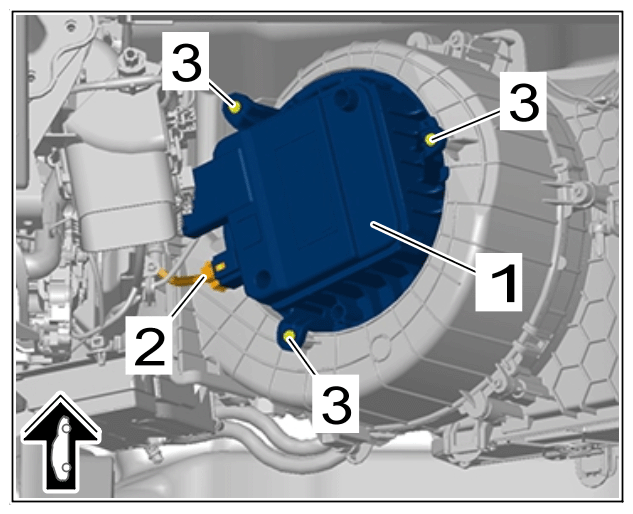

Heater/Fresh-Air Fan Motor
Heater/Fresh-Air Fan Motor
Location
Description
Type
Basic value
Tolerance
Screws for heating/fresh-air fan motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heater/fresh-air fan motor
Item 3
Tightening torque
1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
