Front Air Guide At The Side (To Door-Window Air Vent)

Location Description Type Basic value Tolerance
Screw securing front air guide at the side to dashboard

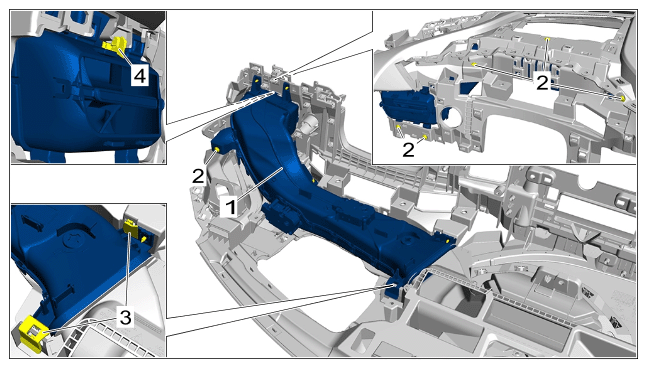

G15566065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front air guide at the side (to door-window air vent) - on driver's side		 Item 2 Tightening torque 1.5 Nm (1 ftlb.)
