Air Guides For Footwell Outlet Vent

Location Description Type Basic value Tolerance
Nut of air guide for rear footwell outlet vent Item 3 Tightening torque 3 Nm (2 ftlb.)

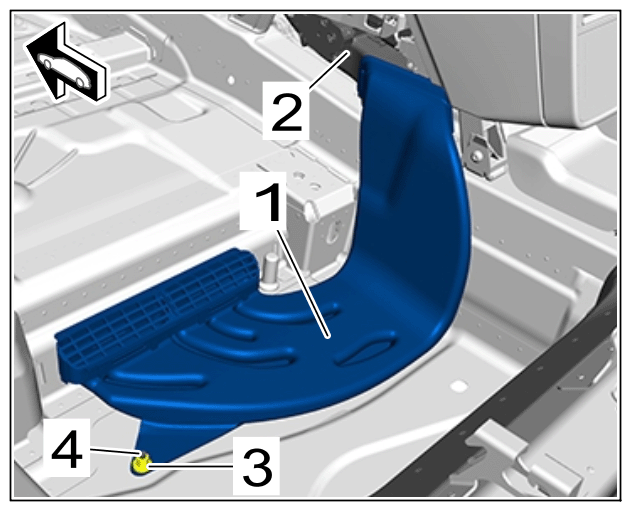

G15566069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for rear footwell outlet vent
