Evaporator (Chiller)

Location	Description	Type	Basic value

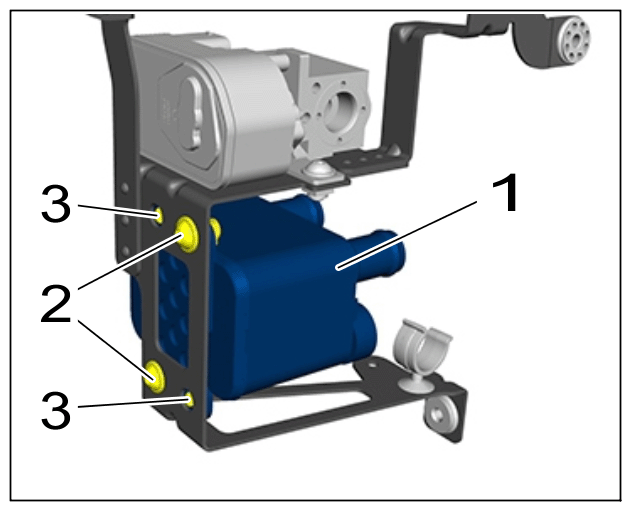

Screw securing evaporator (chiller) to holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller)	Item 2	Tightening torque	8 Nm (6 ftlb.)

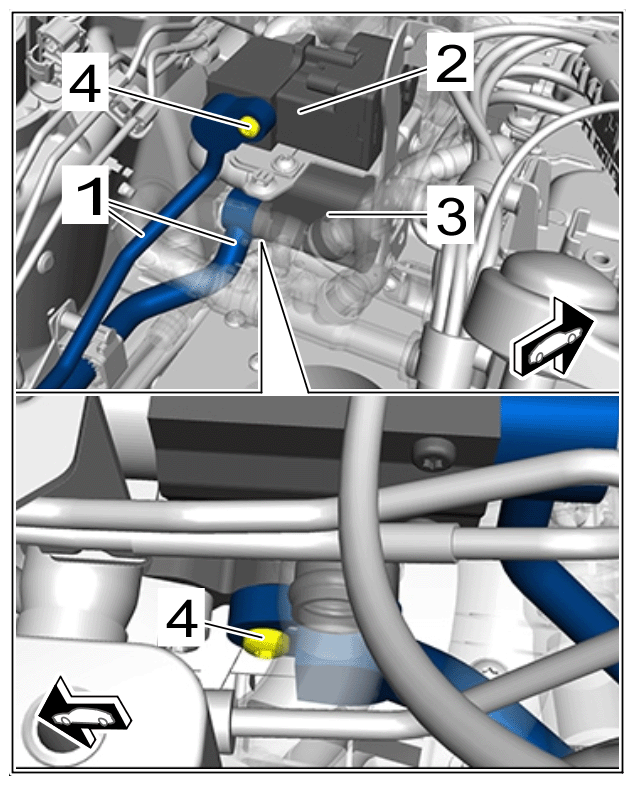

Screw securing refrigerant line to evaporator (chiller) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant lines	Item 4	Tightening torque	8 Nm (6 ftlb.)

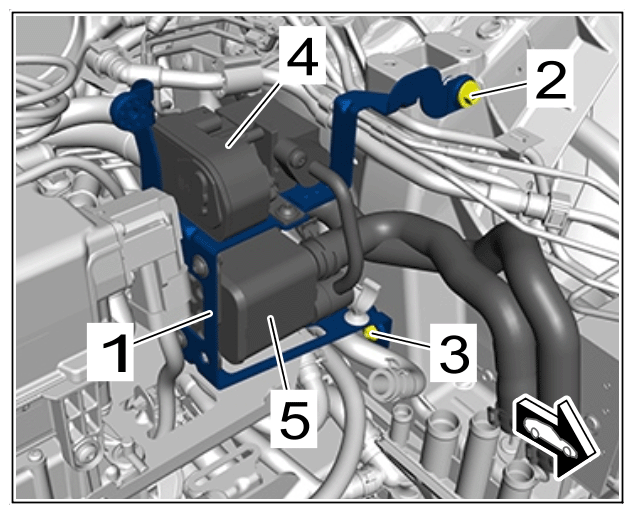

Screw securing evaporator (chiller) holder to body	Item 3	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller) holder
Nut securing evaporator (chiller) holder to body	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Evaporator (chiller) holder
