Removing Temperature Sensor For HV Battery Supply

  1. Remove temperature sensor for HV battery supply -1-  .

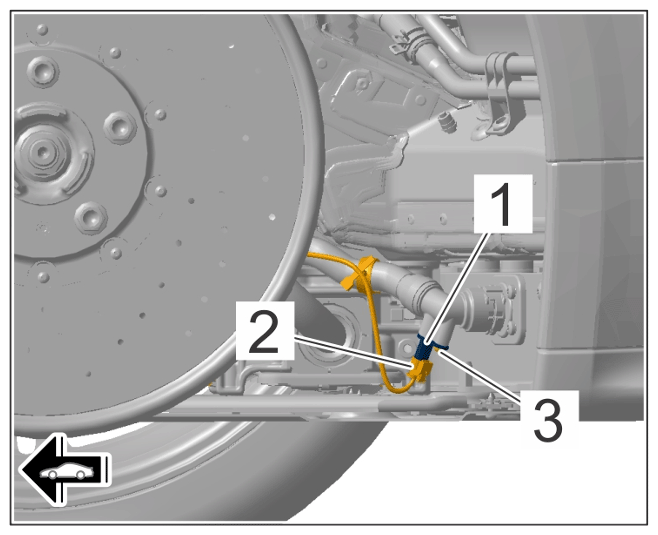

    G15550526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor for HV battery supply

    1. 1.1  Release and disconnect cable plug -2-  .
    2. 1.2  Unscrew screw -3-  and pull off temperature sensor for HV battery supply -1-  .
    3. 1.3  Collect emerging coolant.
    4. 1.4  Replace O-ring.
