Technical Values

Location	Description	Type	Basic value
Cooling fan housing on radiator	Item 1	Tightening torque	4.5 Nm (3 ftlb.)

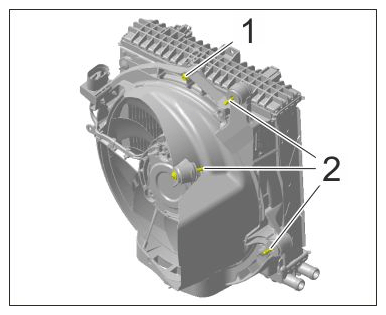

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric fan
Radiator module to body	Item 2	Tightening torque	8 Nm (6 ftlb.)

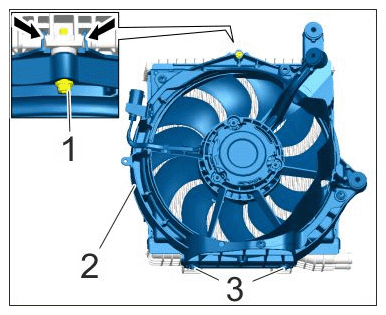

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Installation overview of radiator and electric fan
Distance from radiator to body	Item x	Adjustment value	10 mm

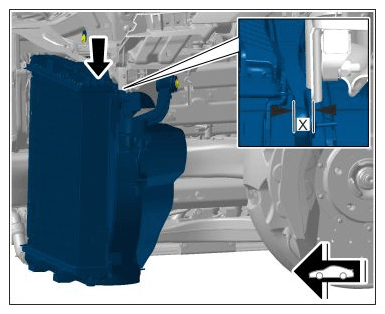

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Distance from radiator to body
