Installing Radiator With Cooling Fan Housing

WARNING: Caustic fluids

Danger of chemical burns
- Wear personal protective gear.
- Ensure that there is good ventilation.
- Avoid contact with caustic fluid.
- If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Move radiator into installation position and fit all screws hand-tight.
Press radiator at the side downwards -Arrow- and set a distance of > Adjustment value 10 mm -x- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

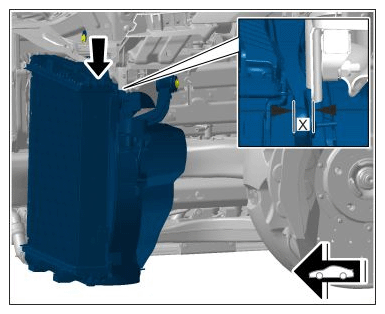

Distance from radiator to body
Secure radiator and coolant hoses.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

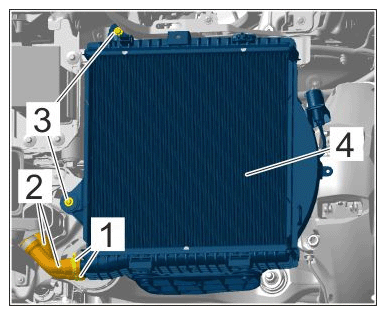

Mounting and coolant hoses for radiator
1. 3.1 Tighten screws -3- .
  > Tightening torque 8 Nm (6 ftlb.)
2. 3.2 Push on coolant hoses -2- and tighten spring band clamps -1- .
  Check that the coolant hoses and spring band clamps are fitted correctly.

  > 1X00IN TECHNICAL VALUES - COOLING - information on "Information"
Secure wire harness and radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

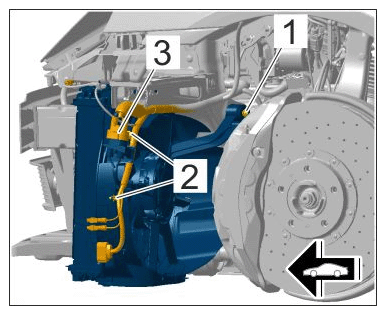

Wire harness on radiator
1. 4.1 Tighten screw -1- .
  > Tightening torque 8 Nm (6 ftlb.)
2. 4.2 Position wire harness and clip in clips -2- .
3. 4.3 Connect cable plug -3- and check that it is fitted securely.
