Removing Reservoir

  1. Unscrew nuts -1-  .

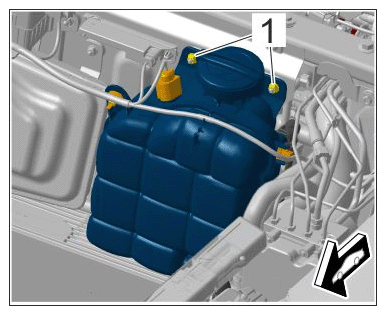

    G15550455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for reservoir

  2. Release and pull off cable plug -1-  . Loosen holder -2-  .

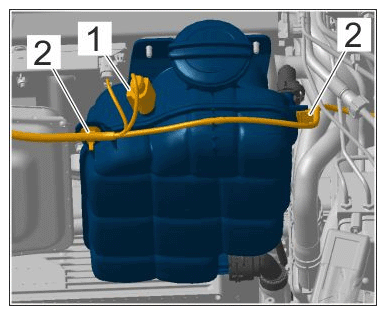

    G15550456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable on reservoir

  3. Remove reservoir -3-  .

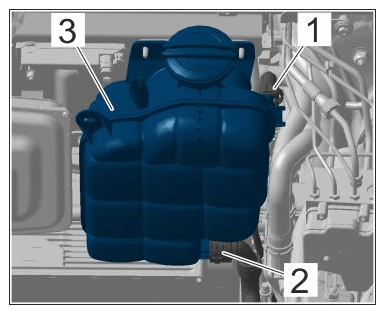

    G15550457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses on reservoir

    1. 3.1  Release spring band clamps.
    2. 3.2  Pull off coolant hoses -1 and 2-  .
    3. 3.3  Collect emerging coolant.
    4. 3.4  Remove reservoir -3-  .
