Installing Reservoir

Move reservoir -1- into installation position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

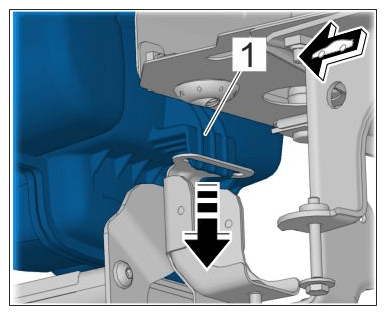

Holder for reservoir
1. 1.1 Insert reservoir -1- into the holder -arrow- .
2. 1.2 Push reservoir -1- onto threaded bolts.

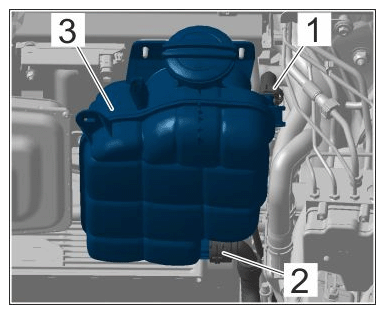

Insert coolant hoses -1 and 2- and check that they are seated securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses on reservoir

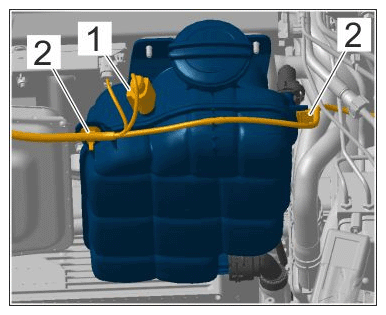

Plug in cable plug -1- and secure holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable on reservoir

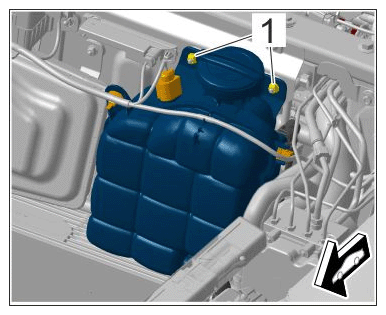

Fit and tighten nuts -1- .
> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for reservoir
