Coolant Filling Device - Overview And Setup

Information

• The servicing equipment is used for the following work:
• For emptying the coolant from the cooling system.
• Flushing with compressed air to assist fluid to flow out.
• Check the hydraulic leak-tightness of the system using pressure and vacuum monitoring.
• Refill with coolant.
• The servicing equipment is equipped with an SD card with the specific software as standard.
• Further help for preparing and using the cooling system servicing equipment can be provided in the Equipment Information.

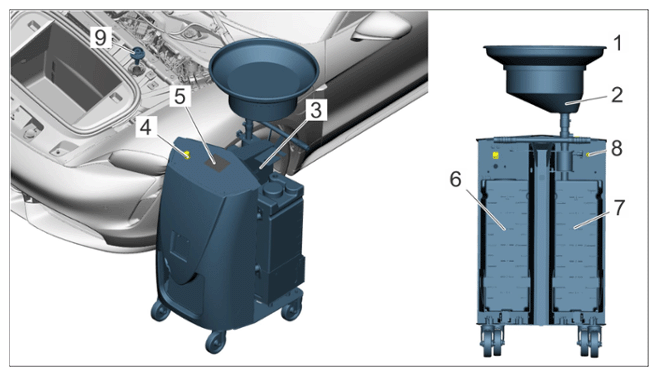

Fig 1: Filling Device For Coolant Circuit Components Location (Shown On Taycan)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Components of filling device for coolant circuit (shown on the Taycan)
