Subsequent Work

  1. Install plenum panel cover.

    > 85221901 REMOVING AND INSTALLING (FRONT) PLENUM PANEL COVER - information on "Installing"

  2. Install rear underbody cover.

    > 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY - information on "Installing"

  3. Install front wheel housing liner at the left.

    > 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - information on "Installing"

  4. Install front underbody cover.

    > 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY - information on "Installing"

  5. Install side cover -1-  at the left between the wheel housing liner and front underbody cover (bolted to the front cover and wheel housing liner).

    Same tightening torque as for screws on the underbody cover.

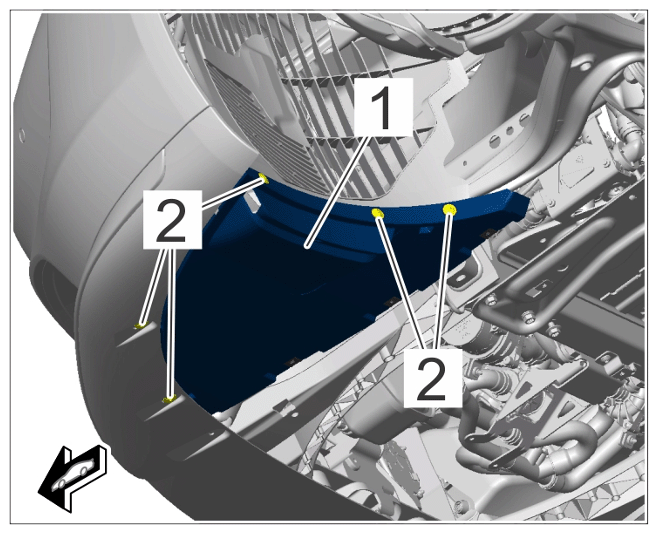

    G15550452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side cover at front left of underbody

  6. Install left front wheel.

    > 440519 REMOVING AND INSTALLING WHEEL - information on "Installing"

  7. Close service disconnector.

    > Refer to the appropriate Service Information
