Preliminary Work

  1. Move the vehicle onto the lifting platform.

    > WM, 4X00IN LIFTING THE VEHICLE

  2. Removing water box cover.

    > 85221901 REMOVING AND INSTALLING (FRONT) WATER BOX COVER - information on "Removing"

  3. Isolate the high-voltage system from the power supply.

    > Refer to the appropriate Service Information

    > 2X00IN ISOLATION FROM POWER SUPPLY PRIOR TO PERFORMING MAINTENANCE TASKS ON BEV VEHICLES

  4. Remove front left wheel.

    > 440519 REMOVING AND INSTALLING WHEEL - information on "Removing"

  5. Remove front left wheel housing liner.

    > 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - information on "Removing"

  6. Remove side cover -1-  on the left of the underbody between the wheel housing liner and front underbody cover.

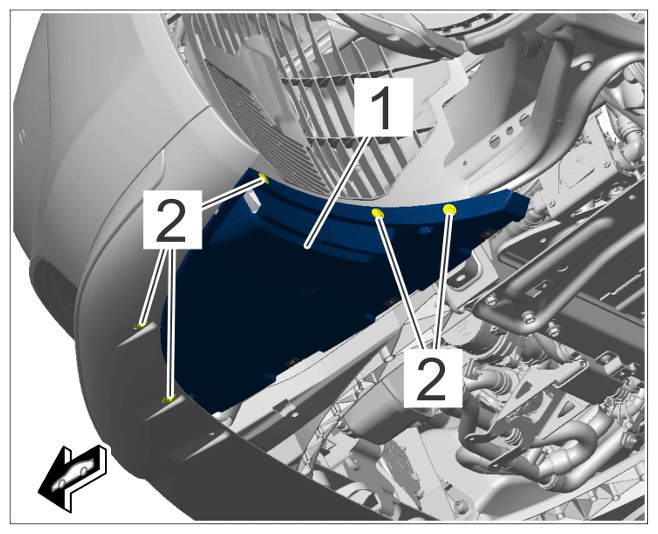

    G15550443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side cover at front left of underbody

    1. 6.1  Unscrew screws -2-  and remove cover -1-  .
  7. Remove front underbody cover.

    > 519219 REMOVING AND INSTALLING FRONT UNDERBODY COVER - information on "Removing"

  8. Remove rear underbody cover.

    > 519419 REMOVING AND INSTALLING REAR UNDERBODY COVER - information on "Removing"
