Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Frame for cooling-air flaps to front apron Oval-head screw, 6 x 20 Tightening torque 2.5 Nm (1.75 ftlb.)

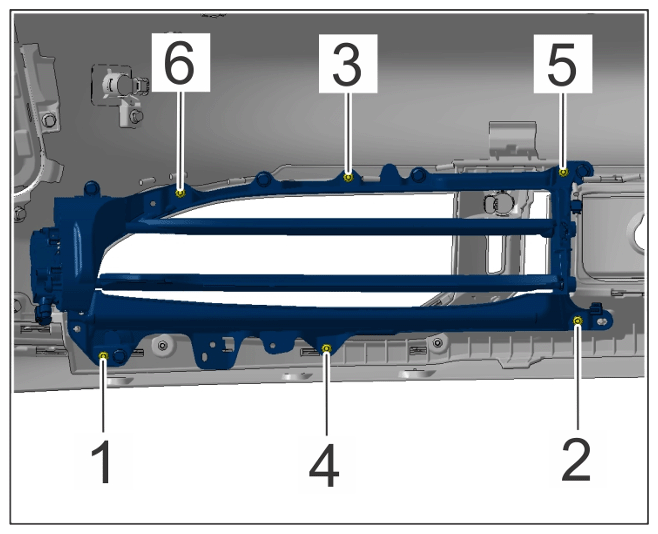

G15550433Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for cooling-air flaps
