Removing Cooling-Air Flaps

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

1. Disconnect wiling harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

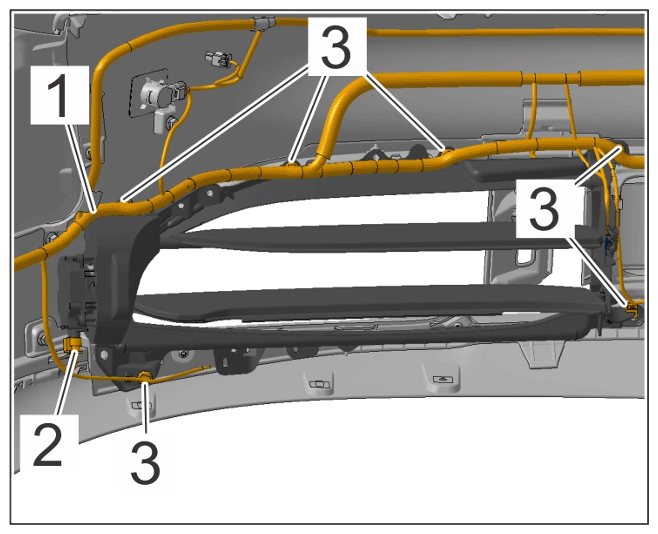

   Wiring harness for cooling-air flaps

   1. 1.1  Release and unplug electric plug connection -2-  .
   2. 1.2  Loosen holder -3-  .
2. Loosen hall sender -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

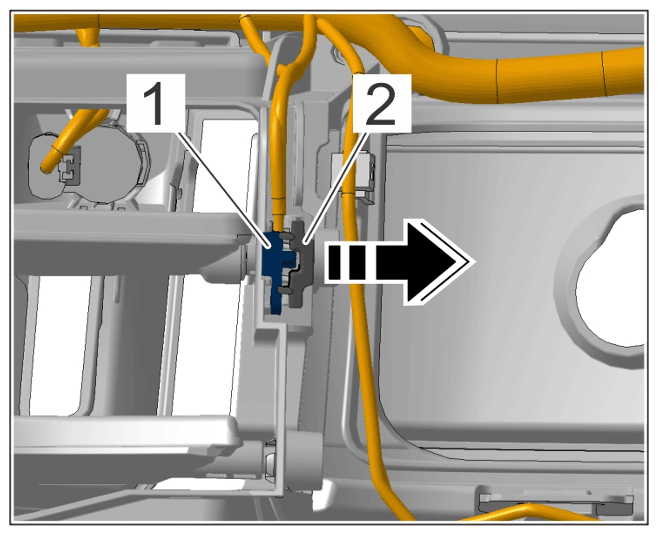

   hall sender for cooling-air flaps

   1. 2.1  Fess locking mechanism -2-  in direction of arrow.
   2. 2.2  Remove hall sender -1-  .
3. Remove cooling-air flaps -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

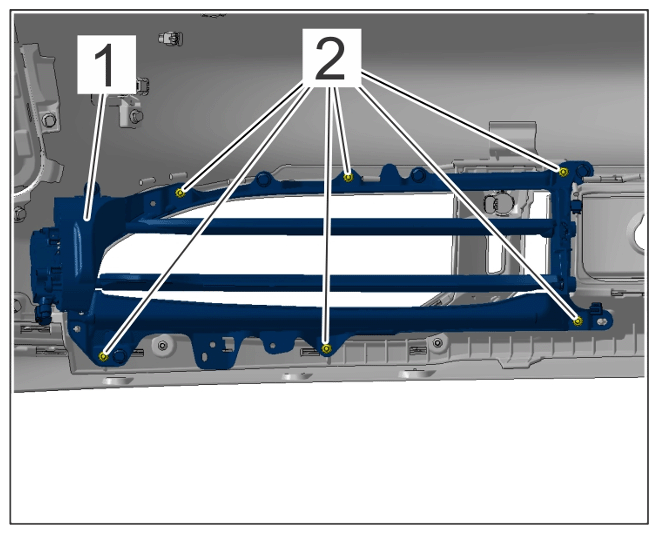

   Cooling-air flaps

   1. 3.1  Unscrew and remove screws -2-  .
   2. 3.2  Remove cooling-air flaps -1-  .
