Removing Rear Air Guide

  1. Remove air guide -1-  .

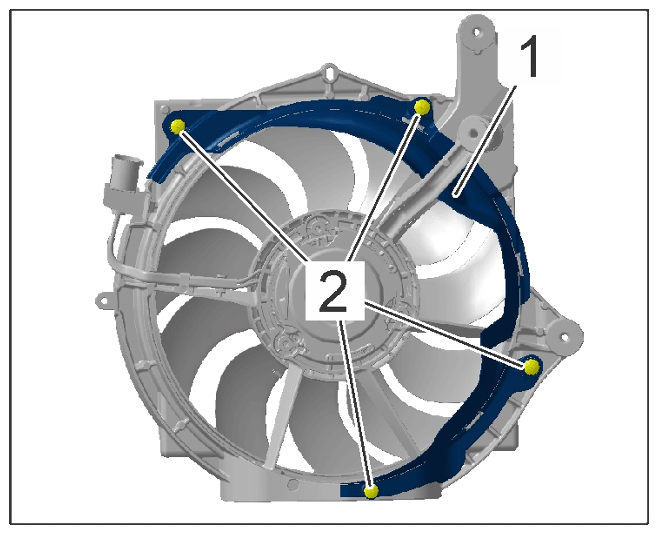

    G15550428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear air guide

    1. 1.1  Loosening expansion rivets -2-
    2. 1.2  Removing air guide -1-
