Removing Front Air Guide

  1. Remove air guide -1  .

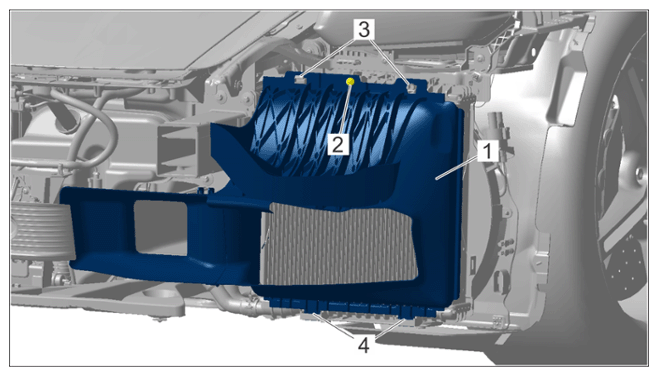

    G15550427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air guide

    1. 1.1  Remove expansion rivet -2-  .
    2. 1.2  Release locking lugs -3-  and remove air guide -1-  from the bracket -4-  .
