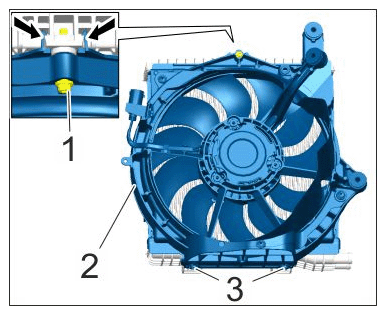

| Cooling fan housing on radiator |
Item 1 |
Tightening torque |
4.5 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

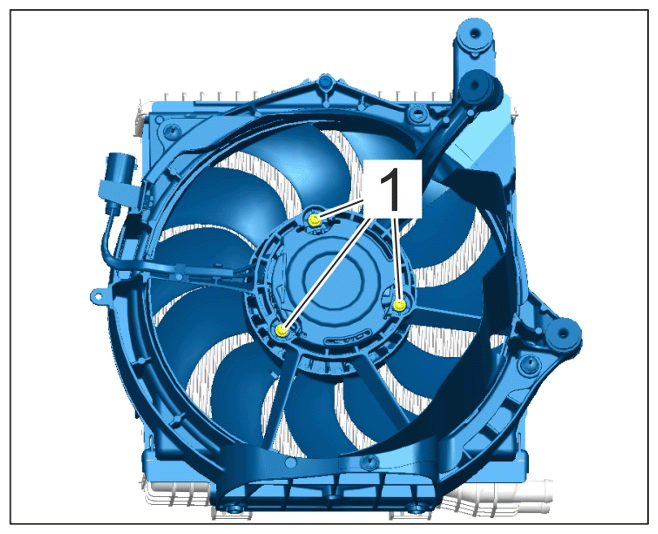

Electric fan |
| Electric fan on cooling fan housing |
Self-tapping screws - always replace |
Tightening torque |
5 Nm (3.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening the electric fan |
