Checking Engine Coolant Level

Check the coolant level in the coolant reservoir and correct it if necessary.

Only check the coolant level when the fluid temperature is at least 15° Celsius .

1.1 The correct coolant level is reached when the coolant is at the lower edge -Arrow- of the filler neck -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

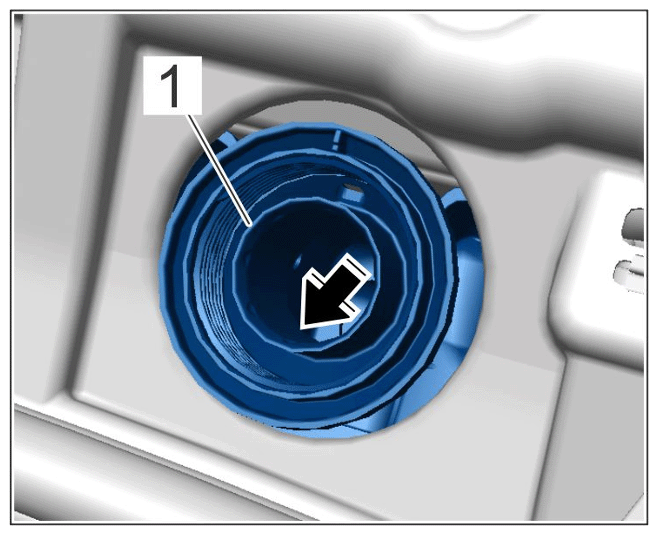

Correct coolant level in coolant reservoir

If the coolant level is no. correct, the cooling system must be checked for leaks.
1. 2.1 If there are no leaks, bleed the cooling system.
