Removing 12-Volt Power Distributor

  1. Unscrew screws -1-  and remove power distributor cover.

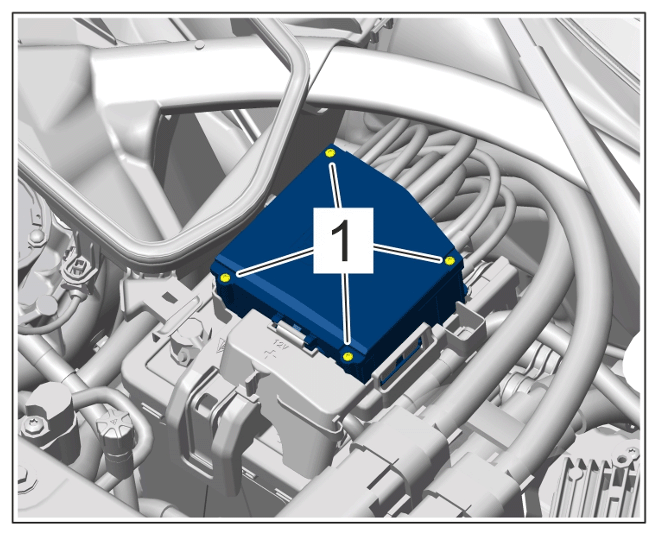

    G15567095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Power distributor cover

  2. Unscrew nuts -1-  and disconnect lines -2-  .

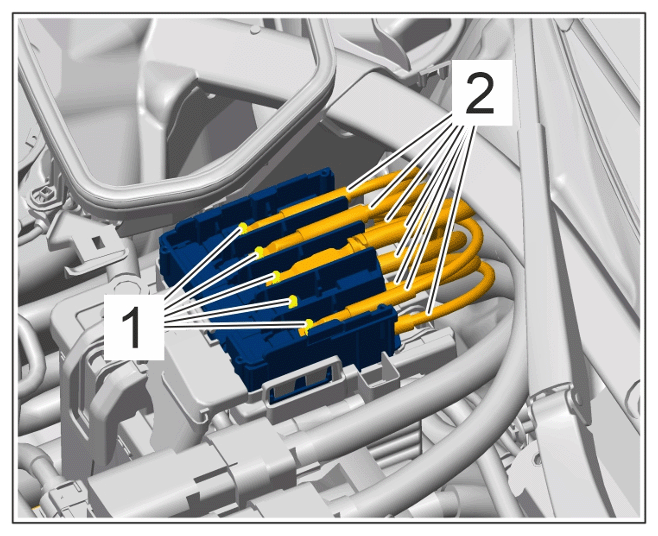

    G15567096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts

  3. Remove 12-volt power distributor.
