Vehicle Electrical System Battery

Location	Description	Type	Basic value
Front battery retaining bracket to body		Tightening torque	8 Nm (5.9 ftlb.)

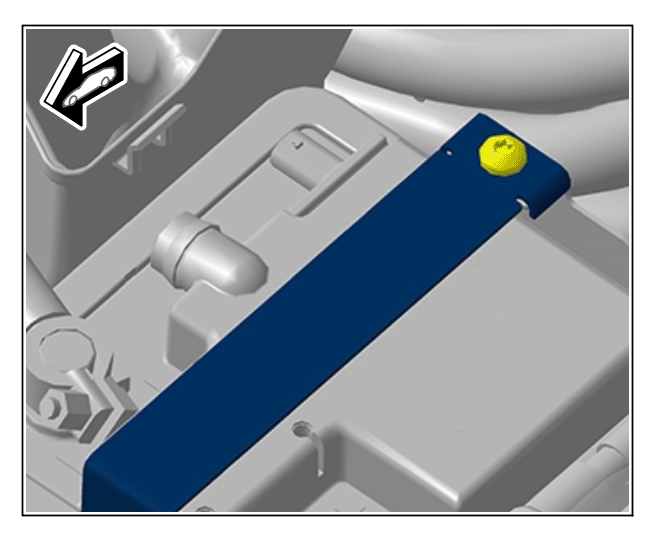

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front retaining bracket
Front battery retaining bracket to rear battery retaining bracket		Tightening torque	8 Nm (5.9 ftlb.)

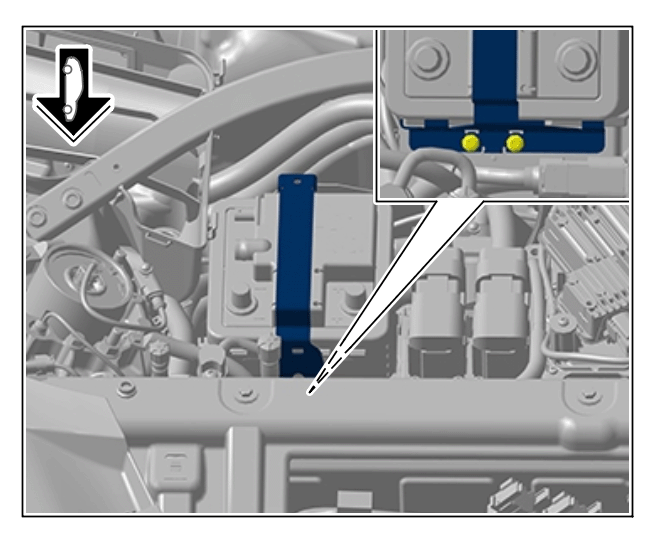

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Retaining bracket
Positive cable to power distributor		Tightening torque	6 Nm (11.8 ftlb.)

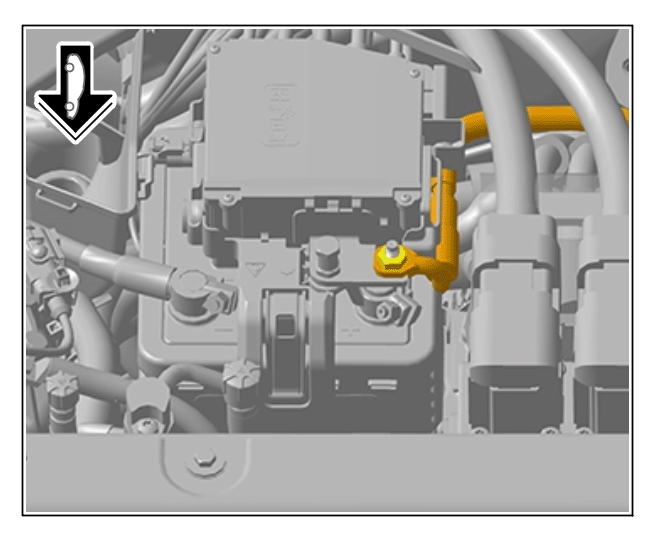

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Positive cable for emergency power supply
Jump-start pin to power distributor		Tightening torque	16 Nm (11.8 ftlb.)
Terminal clamp on battery positive terminal	Item 1	Tightening torque	5 Nm (3.7 ftlb.)

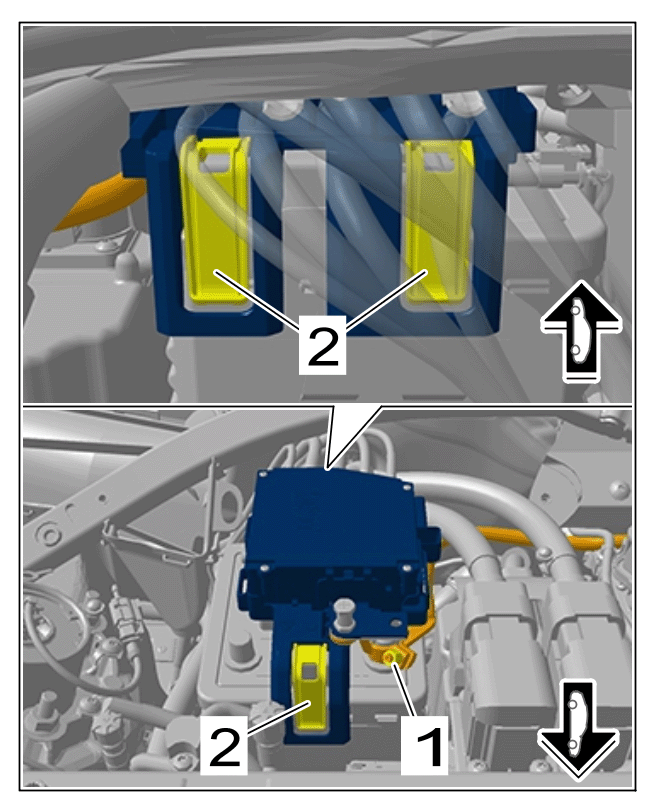

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Current distributor holder
Terminal clamp to battery negative terminal		Tightening torque	5 Nm (3.7 ftlb.)

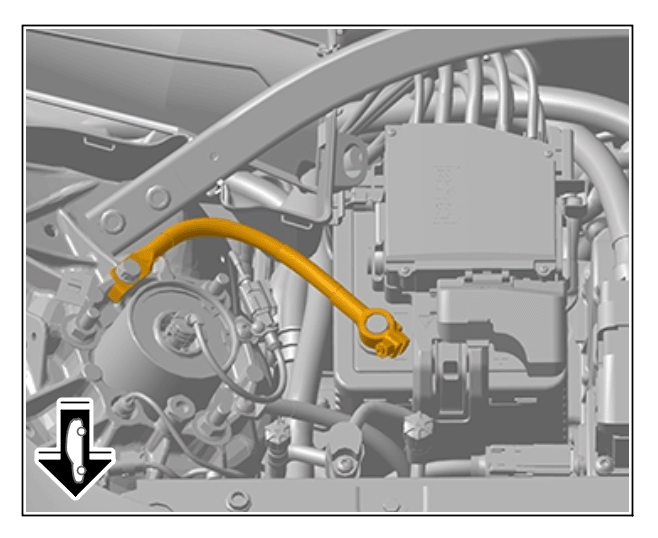

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery negative terminal
Ground strap to spring-strut mount		Tightening torque	15 Nm (11.1 ftlb.)

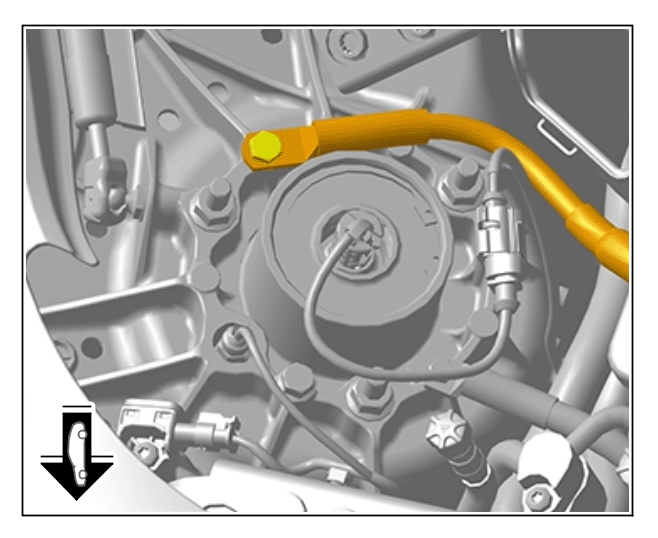

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line to spring-strut mount
